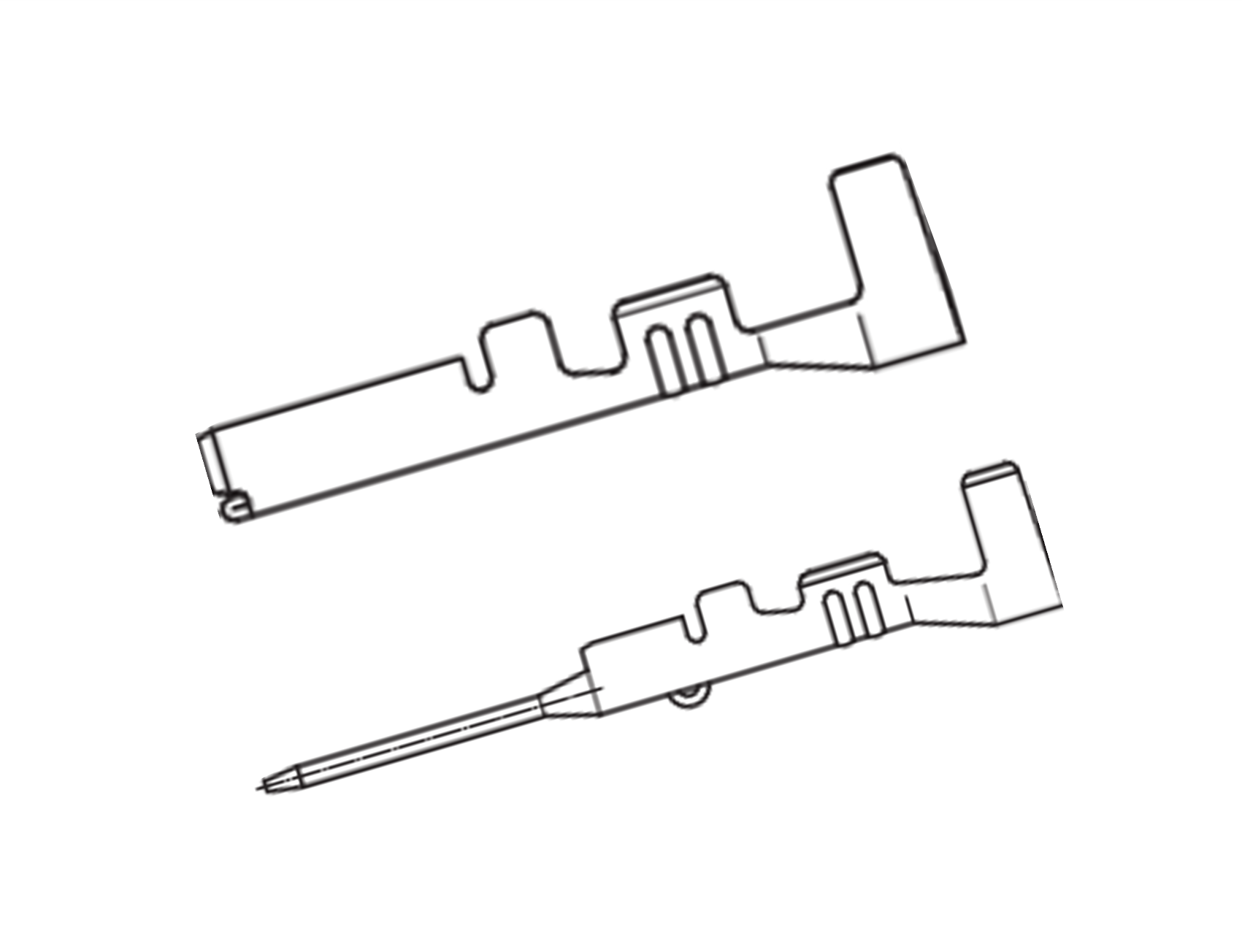

CL07D/E Series
１．Available in two types: wire-to-wire and board-to-board
２．Wide range of wire sizes applicable by changing the wire seal
３．Supports up to 10A

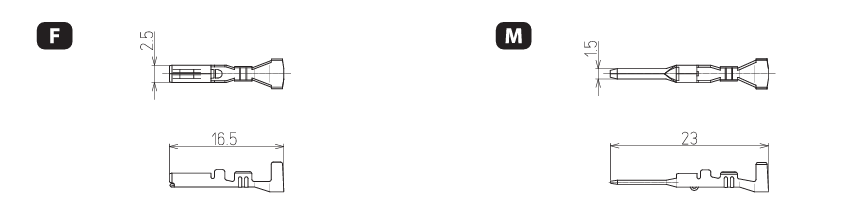

【Model Description】
()・・・ Number of pins
＊・・・ Product specification
-
-
Parts No. CL07DE Contact Mounting Method/
Wiring methodCrimping Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ2.70MAX,Φ3.10MAX Applicable Cable Diameter AWG#22～16
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Mounting Method/
Wiring methodOperating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
Catalog
215001-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215002-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215092-2M Crimping -40 105 Φ2.70MAX AWG#22～20 DL0015_MCICL07DE_BI_CL.pdf 215003-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215093-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215004-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215094-2M Crimping -40 105 Φ3.10MAX AWG#20～16 DL0015_MCICL07DE_BI_CL.pdf 215005-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0015_MCICL07DE_BI_CL.pdf 215006-2M Crimping -40 105 Φ3.10MAX AWG#14 DL0015_MCICL07DE_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
