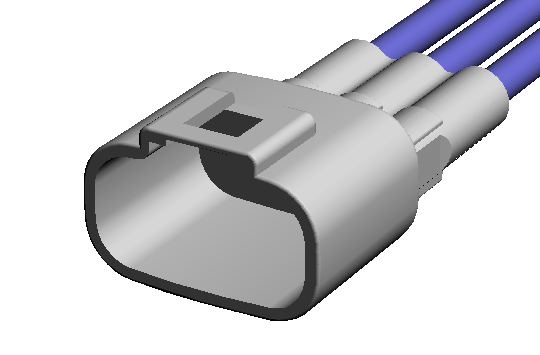

CL07D0()M

CL07D/E Series

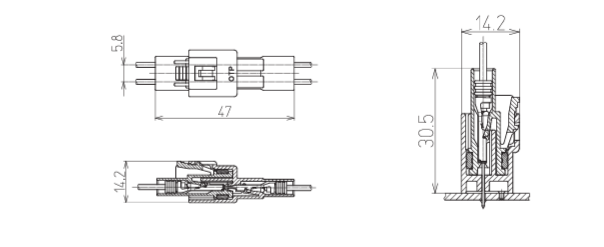

１．Available in two types: wire-to-wire and board-to-board
２．Wide range of wire sizes applicable by changing the wire seal
３．Supports up to 10A

【Model Description】
()・・・ Number of pins
＊・・・ Product specification

  • Parts No. CL07D0()M
    Pin Count 2,3
    Pich
    [mm]    		 5.80
    Waterproof Grade IP67
    Mounting Method/
    Wiring method    		 Crimping
    Current Rating
    [A/Pin]    		 10.00 MAX
    Dielectric Withstanding
    Voltage    		 1,700V A.C.(r.m.s) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
