CL07D/E Series
１．Available in two types: wire-to-wire and board-to-board
２．Wide range of wire sizes applicable by changing the wire seal
３．Supports up to 10A
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
-
-

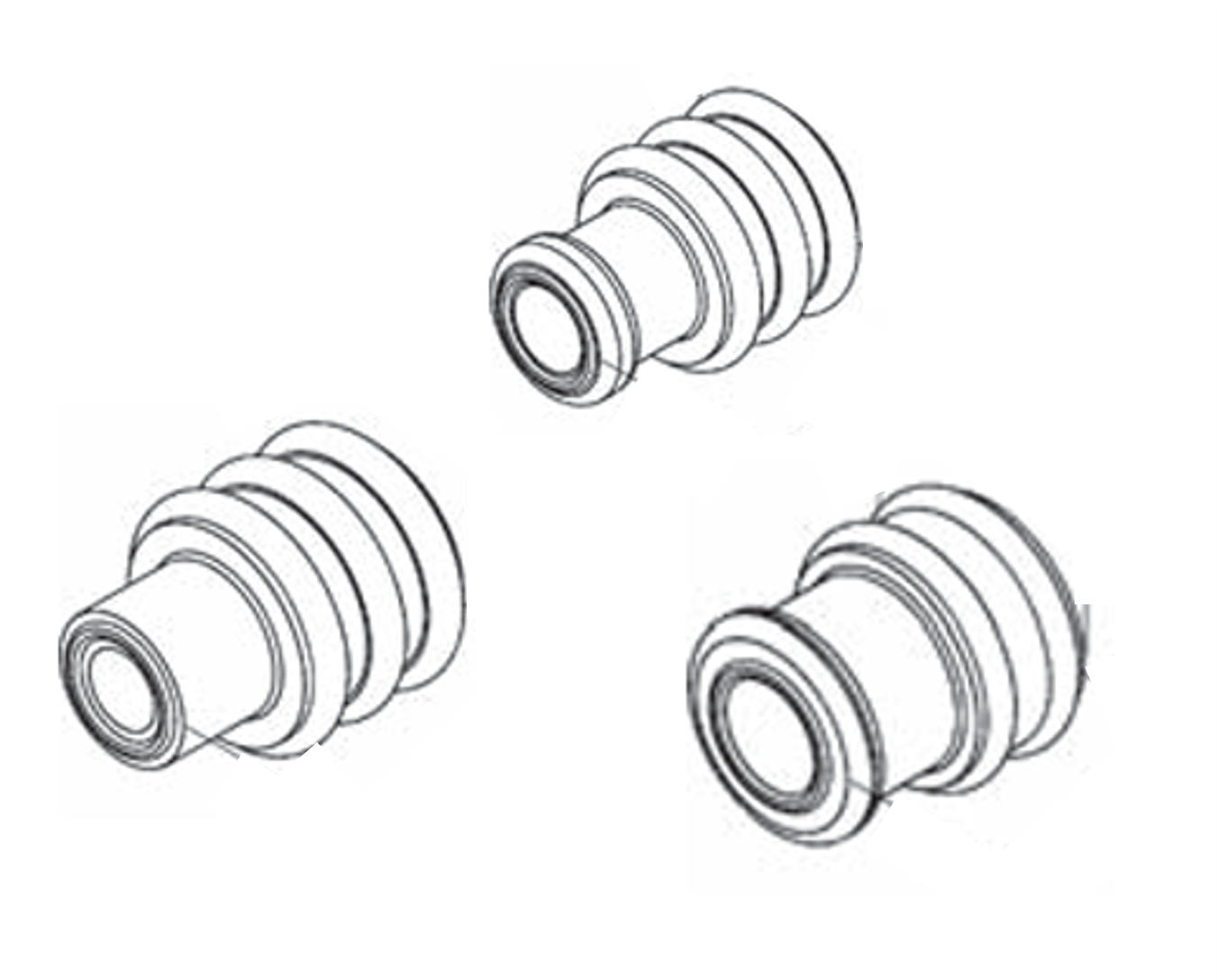

Parts No. CL07DE Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog

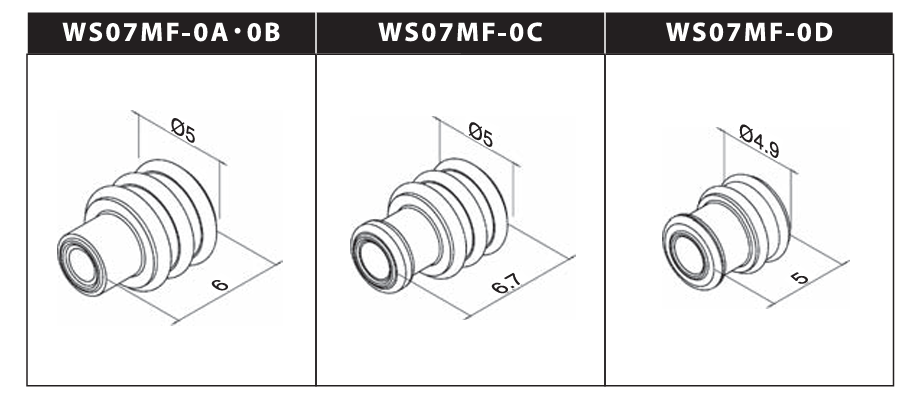

WS07MF-0A -40 105 Φ1.70～2.10 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0015_MCICL07DE_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0015_MCICL07DE_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
