Outline
CL07D/E Series
１．Available in two types: wire-to-wire and board-to-board
２．Wide range of wire sizes applicable by changing the wire seal
３．Supports up to 10A
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Specifiacations
| Parts No. | CL07D0()A |
|---|---|
| Pin Count | 2,3 |
| Pich [mm] |
5.80 |
| Waterproof Grade | IP67 |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
10.00 MAX |
| Dielectric Withstanding Voltage |
1,700V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |

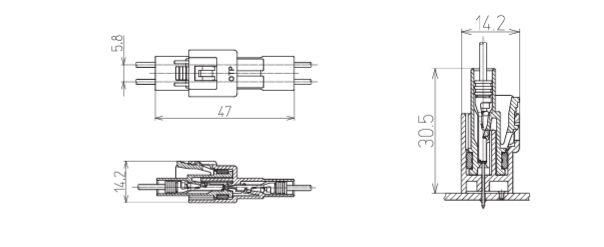

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
