Load cells that use strain gage to convert tension, compression or mass into electric signals. Load cells, connected to various measuring devices for measuring purposes, display, record, control and keep track of the loads.
Applications are diverse varying from small sensors for use in electronic scales, bath scales, game consoles and home electronics to those for general industrial uses, such as truck scales, measuring systems in production lines and tank scales.

Download

Instruction Manual

Parts List
Engineering Information
Case Studies
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outline	Rated capacity

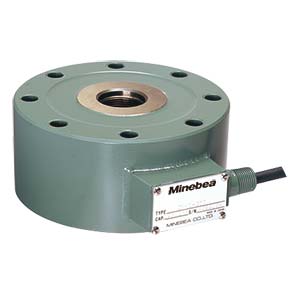

Low profile shear-web type UWV1	Shear-web type structure and strong in lateral load.	19.61 kN {2 tf}～980.7 kN {100 tf}

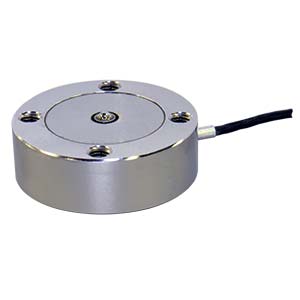

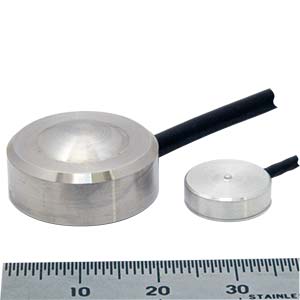

Miniature type CM085	High accurate, compact and thin type compression service load cell with stopper.	2 N ～ 2 kN

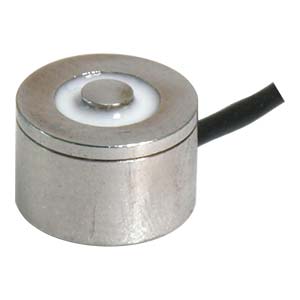

Miniature type LSM - B	12mm~21mm of diameter and suitable for use where space is limited.	4.903 N {500 gf}～19.61 kN {2 tf}
Miniature type LSMS	Miniture type load cell with 5 mm at height and 7 mmat diameter.	196.1 N {20 kgf}～490.3 N {50 kgf}

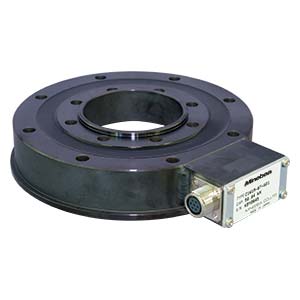

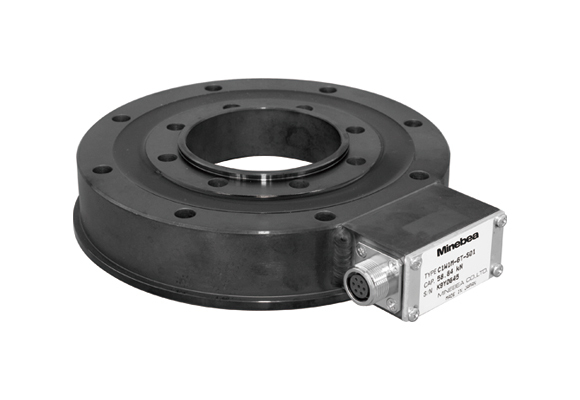

Centre hole type C1W1M	Developed for injection molding machines.	58.84 kN {6 tf}～490.3 kN {50 tf}

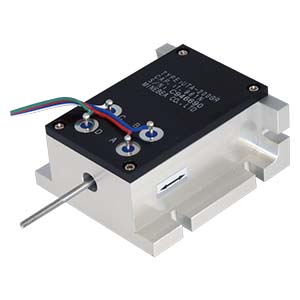

Small capacity bending beam type UL/ULA	Excellent in small force measurement such as tension of yarn.	19.61 mN {2 gf}～980.7 mN {100 gf}

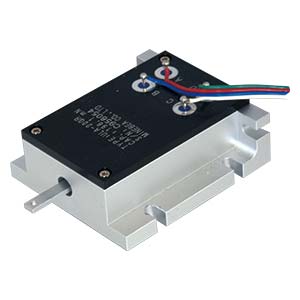

Small capacity bending beam type UTA	The rated capacity is little higher than the UL series'.	980.7 mN {100 gf}～19.61 N {2 kgf}

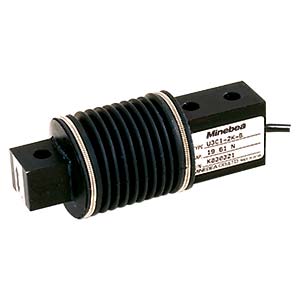

Load beam bending type U3C1-B	Suitable for the weighing systems of which mounting space is limited.	49.03 N {5 kgf}～980.7 N {100 kgf}
