Roller bearings are self-aligning bearings with roller held by retainer between inner race and outer race. They can take the form of single or double row bearings. The main characteristic of this product is the low starting torque when compared to ordinary spherical and rod end bearings. The technology lends itself to critical aircraft applications such as flight control.
Related page
Please refer to the MinebeaMitsumi Aerospace website (English version only) for information on various certified products related to aircrafts.
Engineering Information
Industry
FAQ
What is the difference between spherical bearings and rod end bearings?
The main difference is whether a threaded body (with internal or external threads) is integrated with the spherical bearing itself.

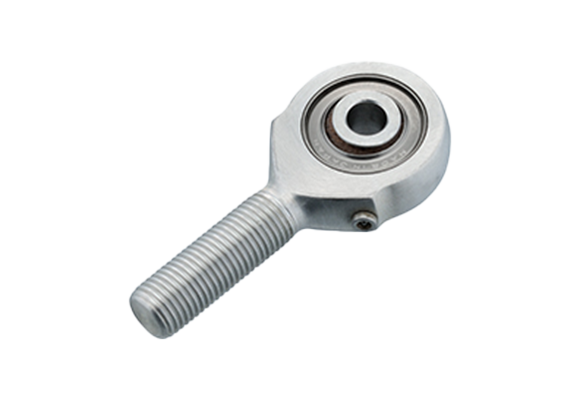

Spherical bearings are standalone bearing units that are press-fitted or staked into a machine housing. On the other hand, rod end bearings feature a spherical bearing integrated into a threaded rod body. This design allows them to be directly screwed into linkages, cylinder rod ends, or connecting sections, enabling easy length adjustment during installation.
What are the technical strengths of MinebeaMitsumi rod end bearings?
Our core strengths lie in high dimensional accuracy achieved through ultra-precision machining technology, alongside high-quality, high-reliability PTFE liner technology that meets aerospace standards.
Thanks to strict quality control and the proven durability of our self-lubricating liners developed over many years, our bearings deliver stable low-friction performance and long service life even under harsh operating environments.
What is the difference between 3-piece and 2-piece structure rod end bearings?
A 3-piece structure consists of a body, race, and ball, offering high precision and long service life, whereas a 2-piece structure features a simpler construction where the ball is assembled directly into the body.
The 3-piece design is widely used in industrial machinery and aircraft requiring high-precision movement and heavy-load capacity, while the 2-piece design is typically used for applications prioritizing cost efficiency.
