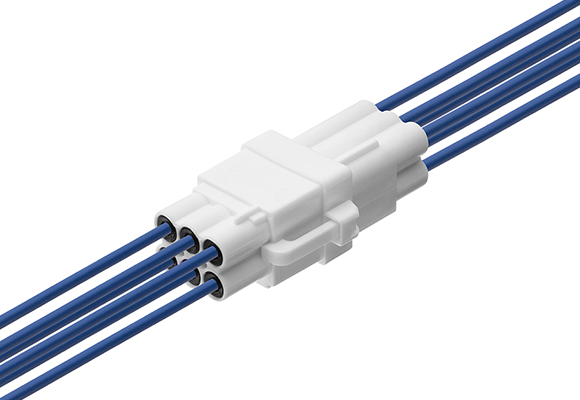

5.00mm Pitch Waterproof Connector
CL07A Series
１．Product suitable for environments where frost and water droplets may adhere
２．Waterproof performance compliant with JIS X 0920 IPX3.
３．Proven track record in applications such as refrigerated display cases and water heaters.
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

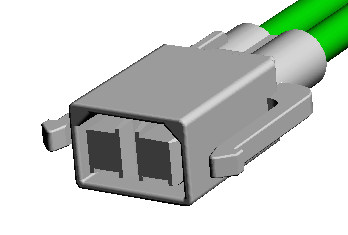

| CL07A0()F |  |
1,2,3,4,6,9 | 5.00×5.90 | IP67 | Crimping | 8.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0013_MCICL07A_BI_CL.pdf | ||
| CL07A0()M |  |
1,2,3,4,6,9 | 5.00×5.90 | IP67 | Crimping | 8.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0013_MCICL07A_BI_CL.pdf | ||

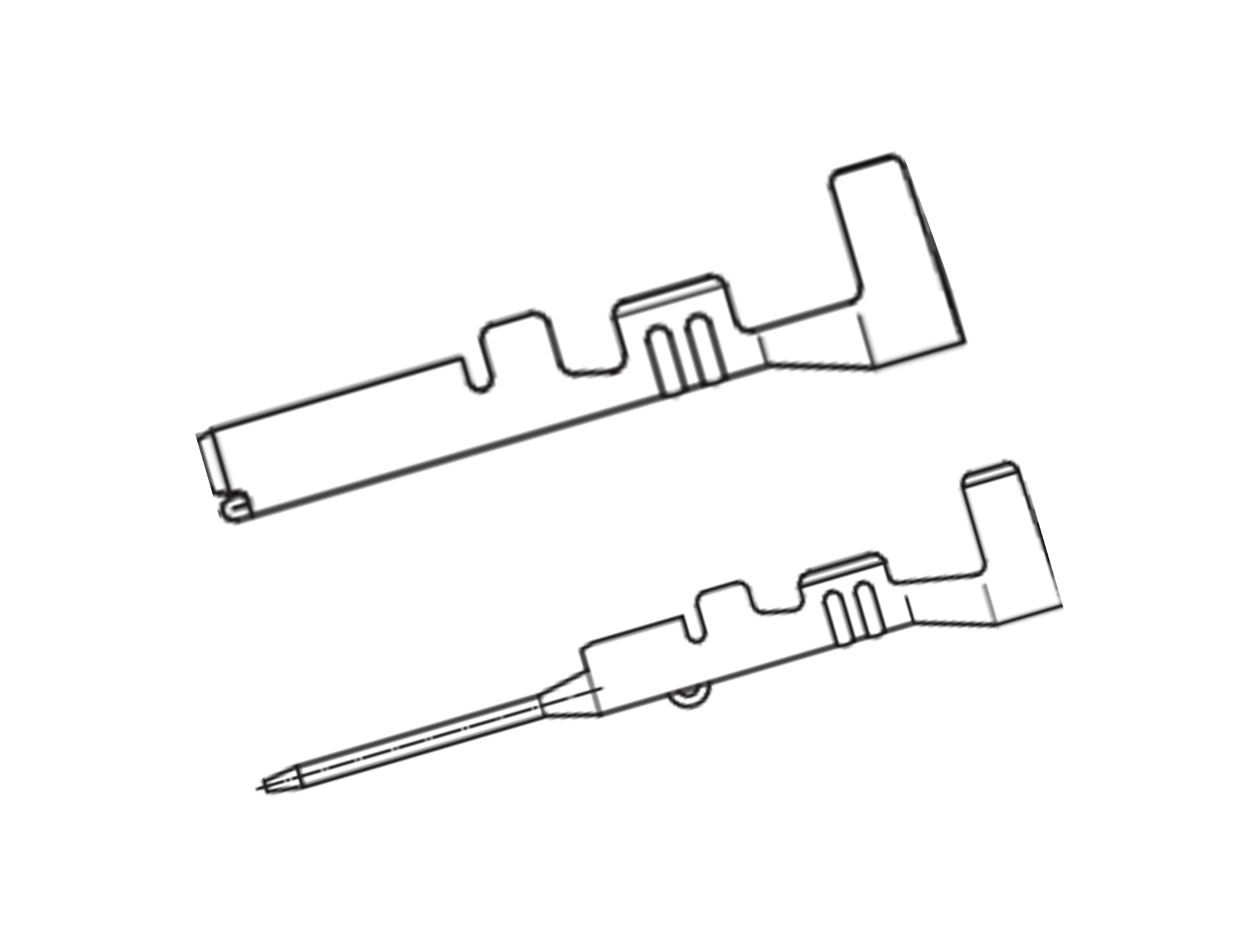

| CL07A Contact |  |
Crimping | -40 | 105 | Φ2.70MAX,Φ3.10MAX | AWG#22～16 | DL0013_MCICL07A_BI_CL.pdf | |||||

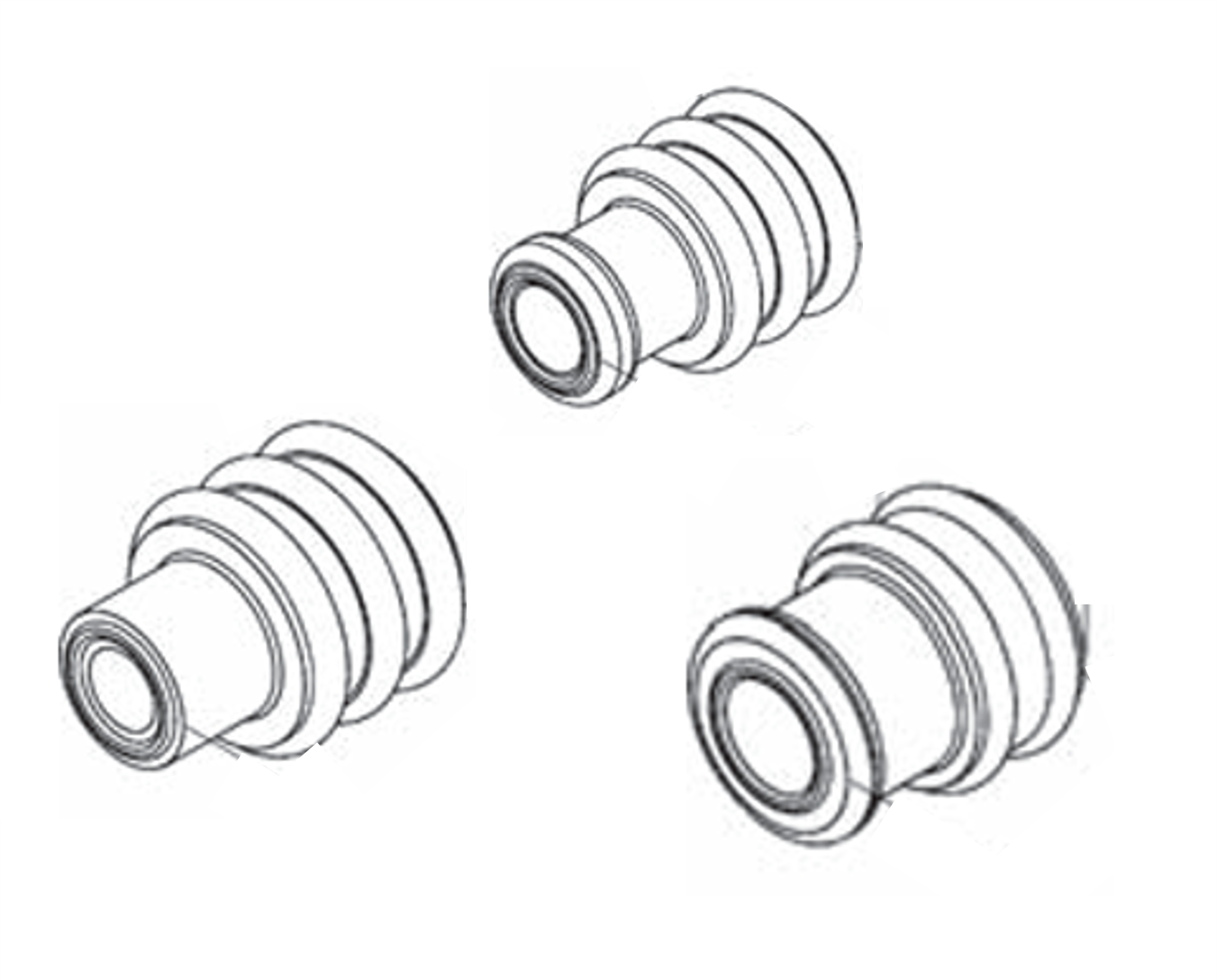

| CL07A Wireseal |  |
Wire Seal | -40 | 105 | Φ1.70～2.10 | DL0013_MCICL07A_BI_CL.pdf |
