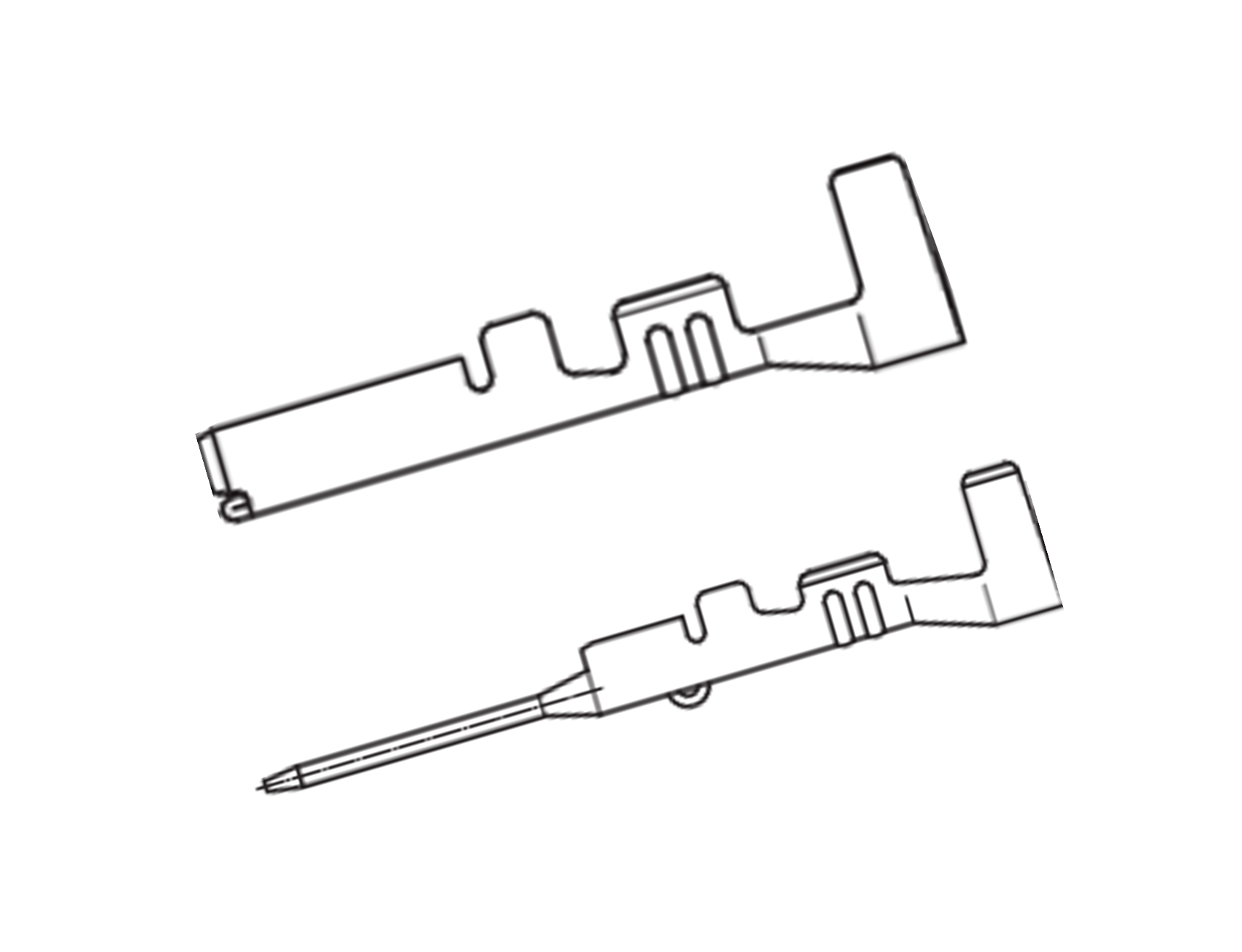

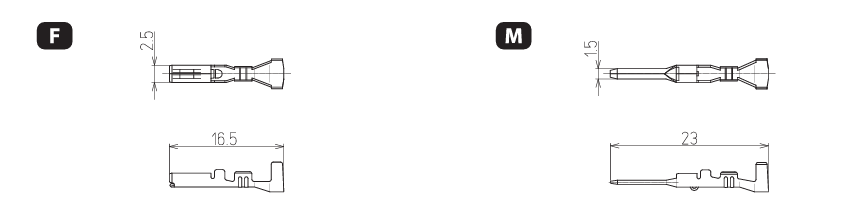

CL07A Contact

CL07A Series
１．Product suitable for environments where frost and water droplets may adhere
２．Waterproof performance compliant with JIS X 0920 IPX3.
３．Proven track record in applications such as refrigerated display cases and water heaters.

【Model Description】
()・・・ Number of pins
＊・・・ Product specification

Parts No.	CL07A Contact
Mounting Method/ Wiring method	Crimping
Operating Temparature Min [deg.C]	-40
Operating Temparature Max [deg.C]	105
Cable Jacket Diameter [Φ]	Φ2.70MAX,Φ3.10MAX
Applicable Cable Diameter	AWG#22～16

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Mounting Method/ Wiring method	Operating Temparature Min [deg.C]	Operating Temparature Max [deg.C]	Cable Jacket Diameter [Φ]	Applicable Cable Diameter	Catalog
215001-2M	Crimping	-40	105	Φ2.70MAX	AWG#22～20	DL0013_MCICL07A_BI_CL.pdf
215002-2M	Crimping	-40	105	Φ2.70MAX	AWG#22～20	DL0013_MCICL07A_BI_CL.pdf
215092-2M	Crimping	-40	105	Φ2.70MAX	AWG#22～20	DL0013_MCICL07A_BI_CL.pdf
215003-2M	Crimping	-40	105	Φ3.10MAX	AWG#20～16	DL0013_MCICL07A_BI_CL.pdf
215093-2M	Crimping	-40	105	Φ3.10MAX	AWG#20～16	DL0013_MCICL07A_BI_CL.pdf
215004-2M	Crimping	-40	105	Φ3.10MAX	AWG#20～16	DL0013_MCICL07A_BI_CL.pdf
215094-2M	Crimping	-40	105	Φ3.10MAX	AWG#20～16	DL0013_MCICL07A_BI_CL.pdf
215005-2M	Crimping	-40	105	Φ3.10MAX	AWG#14	DL0013_MCICL07A_BI_CL.pdf
215006-2M	Crimping	-40	105	Φ3.10MAX	AWG#14	DL0013_MCICL07A_BI_CL.pdf

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
