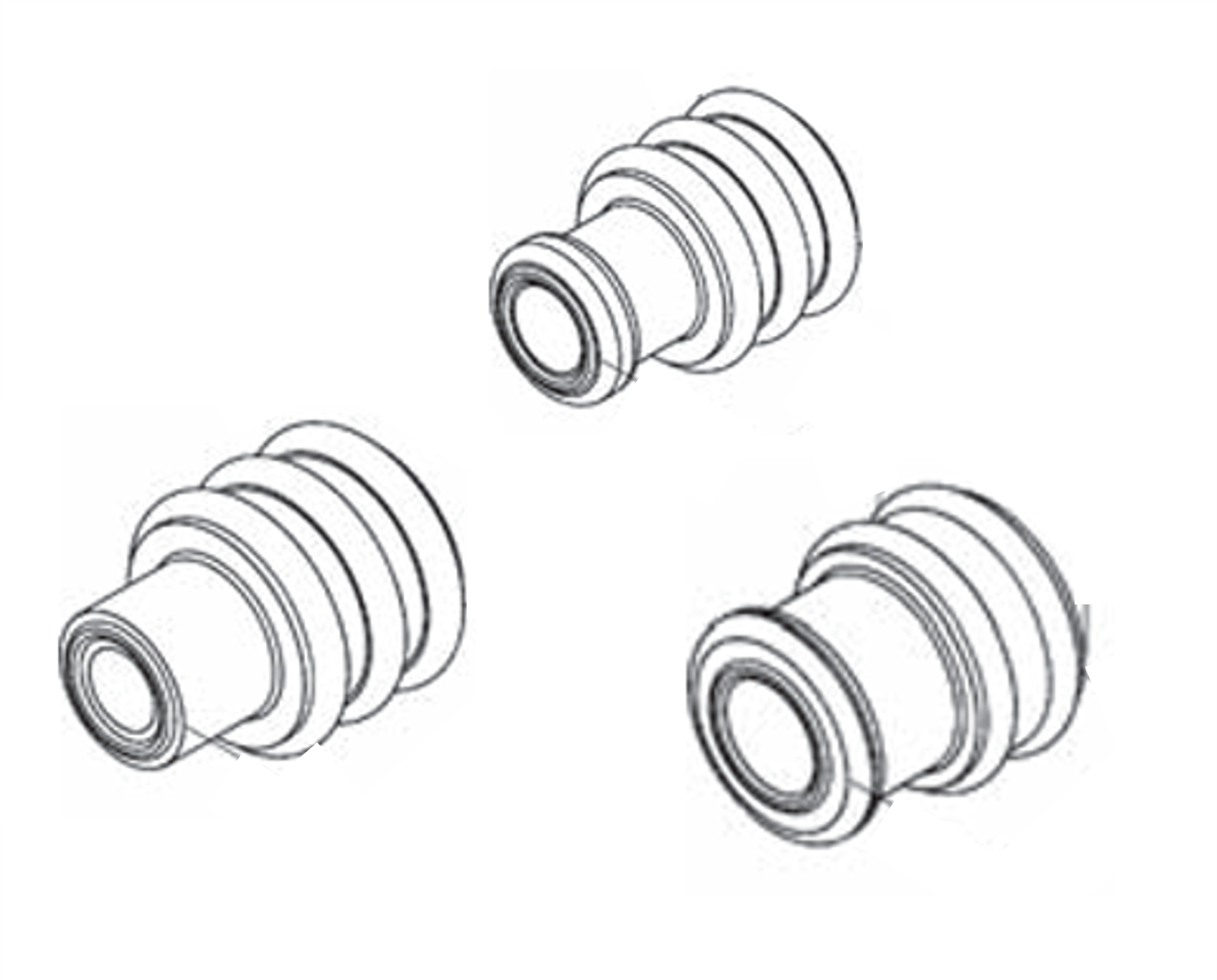

CL07A Series
１．Product suitable for environments where frost and water droplets may adhere
２．Waterproof performance compliant with JIS X 0920 IPX3.
３．Proven track record in applications such as refrigerated display cases and water heaters.
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
-
-
Parts No. CL07A Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog

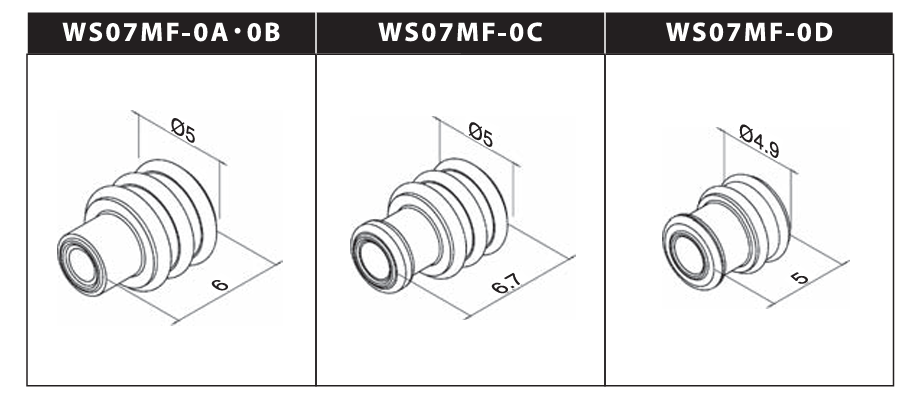

WS07MF-0A -40 105 Φ1.70～2.10 DL0013_MCICL07A_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0013_MCICL07A_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0013_MCICL07A_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0013_MCICL07A_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
