KB01 Series | Automotive Multipole 2.55mm Pitch Waterproof Connector

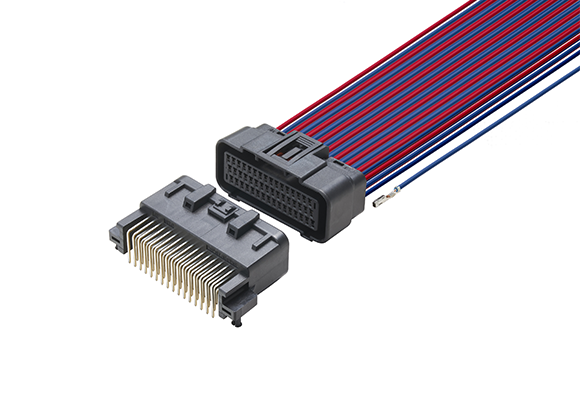

The KB01 series is a 48-position waterproof connector developed for automotive boards. With a 2.55mm pitch, it supports 0.5 to 0.85sq wires and achieves downsizing and cost reduction through a leverless structure.
【Features】
■ Maintains secure electrical connections on automotive boards with a terminal structure offering low insertion/extraction force and high contact reliability
■ Achieves overall connector downsizing and cost reduction through a low insertion force structure and leverless design
■ Ensures IP67-equivalent waterproof performance via a structure where crimp terminals are inserted into the connector
■ Prevents wire swaying and reduces the load on the wire seal with a standard-equipped seal cover
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
KB01 Series | Automotive Multipole 2.55mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

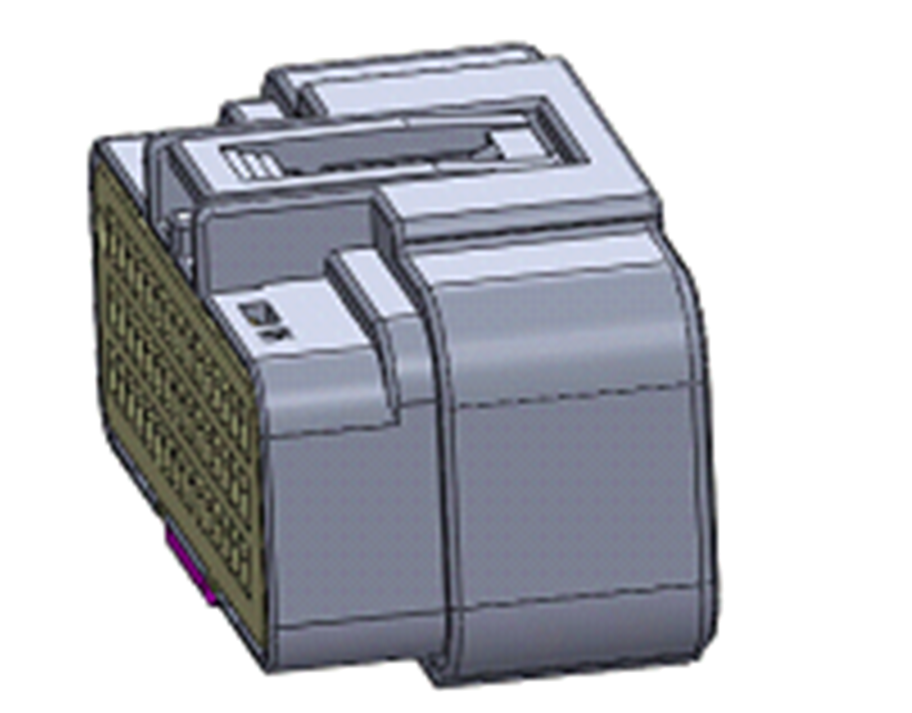

| KB01A6-48B0-01 |  |
48 | 2.55 | IP67 | Crimping | Power4.00A MAX/Signal1.00A MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 120 | Φ1.90 MAX | DL0005_MCIKB01_BI_CL.pdf | |
| KB01C6-010A |  |
Crimping | -40 | 120 | Power:Φ1.70～1.90 Signal:Φ1.50～1.70 |
AWG#18～20 | DL0005_MCIKB01_BI_CL.pdf | |||||

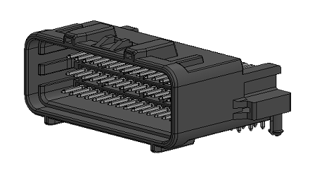

| KB01A3-48BA |  |
48 | 2.55 | IP67 | DIP | Power4.00A MAX/Signal1.00A MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 120 | DL0005_MCIKB01_BI_CL.pdf |
