The KB01 series is a 48-position waterproof connector developed for automotive boards. With a 2.55mm pitch, it supports 0.5 to 0.85sq wires and achieves downsizing and cost reduction through a leverless structure.
【Features】
■ Maintains secure electrical connections on automotive boards with a terminal structure offering low insertion/extraction force and high contact reliability
■ Achieves overall connector downsizing and cost reduction through a low insertion force structure and leverless design
■ Ensures IP67-equivalent waterproof performance via a structure where crimp terminals are inserted into the connector
■ Prevents wire swaying and reduces the load on the wire seal with a standard-equipped seal cover
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

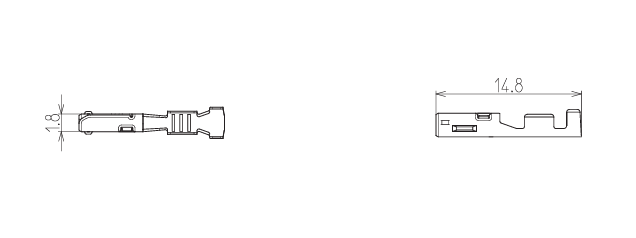

・This product is a terminal for the KB01 series.
・Applicable cable O.D. is Φ1.90 max. Restrictions apply to power and signal applications.
-
-
Parts No. KB01C6-010A Mounting Method/
Wiring methodCrimping Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]120 Cable Jacket Diameter
[Φ]Power:Φ1.70～1.90
Signal:Φ1.50～1.70Applicable Cable Diameter AWG#18～20
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
