The KB01 series is a 48-position waterproof connector developed for automotive boards. With a 2.55mm pitch, it supports 0.5 to 0.85sq wires and achieves downsizing and cost reduction through a leverless structure.
【Features】
■ Maintains secure electrical connections on automotive boards with a terminal structure offering low insertion/extraction force and high contact reliability
■ Achieves overall connector downsizing and cost reduction through a low insertion force structure and leverless design
■ Ensures IP67-equivalent waterproof performance via a structure where crimp terminals are inserted into the connector
■ Prevents wire swaying and reduces the load on the wire seal with a standard-equipped seal cover
* Waterproof performance may be affected by actual operating conditions or improper assembly (terminal insertion/mating).
Outline

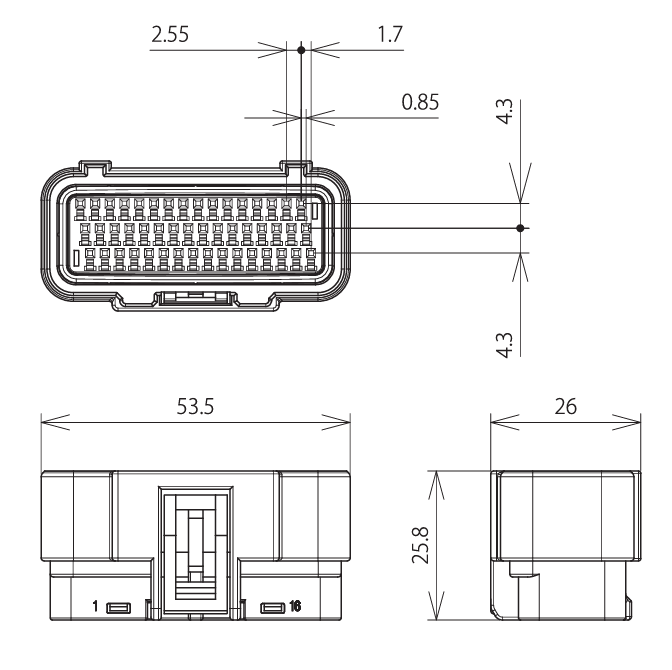

・This product is a female housing for the KB01 series (terminals not included).

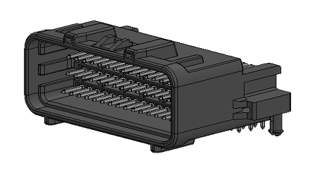

・Mates with the board-to-wire pin block, part number KB01A3-48BA.
-
-
Parts No. KB01A6-48B0-01 Pin Count 48 Pich
[mm]2.55 Waterproof Grade IP67 Mounting Method/
Wiring methodCrimping Current Rating
[A/Pin]Power4.00A MAX/Signal1.00A MAX Dielectric Withstanding
Voltage1,000V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]120 Cable Jacket Diameter
[Φ]Φ1.90 MAX
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
