Transmitters

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Download

Parts List
Industry

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Product image	Outline
Transmitter CSA-503C		Internal remote sensing circuit, Automatic zero function (Option), Equipped CALIB function (0.3 mV/V) and CHECK function
Transmitter CSA-507C		Compact size and light weight, Simple design, Lower price, Trimmer to adjust the current output is equipped.
PCB type Transmitter CSA-521		Compact size and light weight, Simple design, Lower price
Transmitter CSA-528		Most suitable direct-current amplifier for measurements of the load, pressure, the torque, and displacement, etc. Automatic zero function equipped as an option. CE mark applied product.

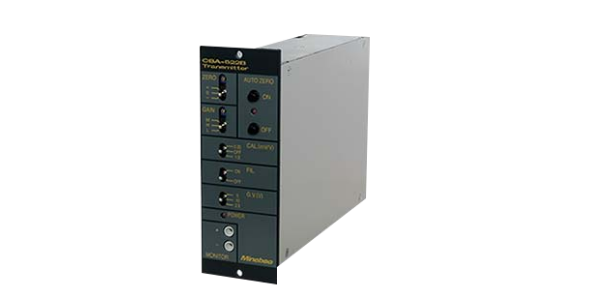

High response type transmitter CSA-522B		Achieved space saving when a multi channel is applied. Optional case is available to mount and it provide an easy exchange for maintenance.
Transmitter for transformer method torque transducer CSA-561C		Special transmitter for transformer method torque transducer TMNR(-ME) series. Input and output isolation, Digital switch for strain setting,
Transmitter for optical transmission method torque meter OPT-563B		The calibration data for four torque meters can be recorded and changed. Digital compensation of asymmetry,linearize and twist direction reversing can be executed.
Transmitter for optical transmission method torque meter OPT-564		Corresponded to the high response and highly accurate type optical transmission method flange type torque transducer TMHSB series. Also available to former model optical transmission torque transducer. The calibration data for four torque meters can be recorded and changed. Digital compensation of asymmetry, linearize and twist direction reversing can be executed.
