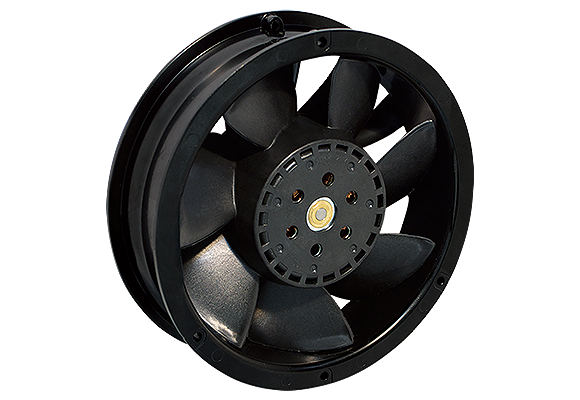

High Power DC Axial Fan motor

Introducing large size axial fans developed mainly for telecommnication equipment.
Using MinebeaMitsumi made ball bearings and retaining high reliability with three phase driving system DC brushless motor.
These motors are used for the parts and components where a stronger airflow and static pressure are required.
Environment-compatible type products such as dustproof, waterproof, and so on are also being provided.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Size
(W)
[mm]

Size
(H)
[mm]

Thickness(L)
[mm]

Rating Voltage
[V]

Speed
lower limit
[min-1]

Speed
upper limit
[min-1]

Max. Air Flow
lower limit
[CFM]

Max. Air Flow
upper limit
[CFM]

Max. Air Flow
lower limit
[m3/min]

Maximum Airflow
upper limit
[m3/min]

Max. Static Pressure
lower limit
[Pa]

Max. Static Pressure
upper limit
[Pa]

R150H Series 150 172 51 24, 48 5000 6500 364 473 10.3 13.4 557 798
R172H Series 172 172 51 24, 48 5000 6500 364 473 10.3 13.4 557 798
R200A Series 200 200 51 24, 48 4000 6500 472 783 13.4 22.2 529 1028
