Gage Pressure Sensor

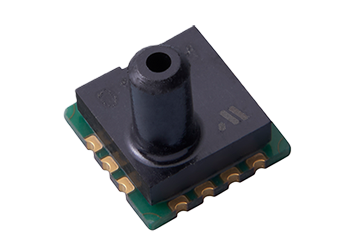

This gauge pressure sensor is a pressure sensor IC utilizing MEMS technology. It combines a MEMS sensor with a Delta-Sigma (⊿Σ) AD converter to output high-precision pressure values digitally. I2C and SPI interfaces are available.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Product name |
Pressure Type |
Associated Data |
Supply |
Operating |
Operating |
Current |
Pressure accuracy |
Pressure |
Conversion Time |
Interface |
Package Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MMR901 | Gage Pressure | PDF product catalog | 2.4 to 3.6 | 0 to 60 | 0 to 40 | 530 | ±266 | 5.1 | SPI | 7.0 x 7.0 x 7.2 | |
| MMR902 | Gage Pressure | PDF product catalog | 1.7 to 3.6 | 0 to 60 | -4 to 48 | 650 | ±266 | 5.3 / 3.7 / 2.7 / 0.7 | 3.9 / 7.8 / 15.6 / 250.0 | SPI/I2C | 7.0 x 7.0 x 7.2 |
| MMR906 | Gage Pressure | PDF product catalog | 1.7 to 3.6 | 0 to 60 | -4 to 48 | 640 | ±266 | 6.7 / 4.7 / 3.3 / 0.9 | 4.1 / 7.9 / 15.6 / 247.0 | SPI | 5.0 x 6.0 x 7.2 |
| MMR920 | Gage Pressure | PDF product catalog | 3.0 to 3.6 | 0 to 50 | ±2 / ±4 / ±7 / ±10 | 800 | ±20 /±40 /±70 / ±100 | 1.8 / 0.9 / 0.4 / 0.2 | 0.4 / 0.8 / 1.6 / 3.2 | SPI/I2C | 7.0 x 7.0 x 7.2 |
If you need products in small lots, please check the following links.
