MMR920

This gauge pressure sensor is a pressure sensor IC utilizing MEMS technology. It combines a MEMS sensor with a Delta-Sigma (⊿Σ) AD converter to output high-precision pressure values digitally. I2C and SPI interfaces are available.

Outline

The MMR920 series is a Gauge pressure sensor module that includes a MEMS pressure die with a dedicated analog front end IC to provide a fully calibrated and temperature compensated digital output (I2C/SPI). Its unique packaging structure provides protection from aggressive media since electronics are not exposed to the high pressure port. The MMR920 series is ideal for low pressure application requiring high accuracy and robustness.

Devices using air pressure
HVAC/VAV Systems
Vacuum Cleaners, Refrigerators
Electronic Musical Instruments
Gas Meters
Alcohol Testers
Medical Equipment

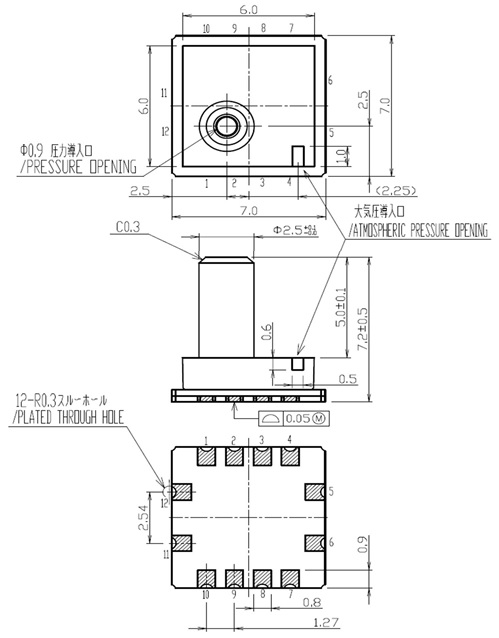

① Small package 7.0(W) ×7.0(D) ×7.2(H)mm
② A high-accuracy pressure value can be output
　Pressure accuracy：±0.5%FS
③ It corrects the differences of sensors and
temperature characteristics when shipped from
our factory
④ It digitally outputs pressure value (SPI,I2C)

Pressure Type	Gage Pressure
Pressure Medium	Air (no Condensation)
Supply Voltage Range [V]	3.0 to 3.6
Operating Temperature Range [deg.C]	0 to 50
Operating Pressure Range [kPa]	±2 / ±4 / ±7 / ±10
Current Consumption [μA]	800
Pressure accuracy [Pa]	±20 /±40 /±70 / ±100
Pressure effective resolution [PaRMS]	1.8 / 0.9 / 0.4 / 0.2
Conversion Time [ms]	0.4 / 0.8 / 1.6 / 3.2
Interface	SPI/I2C
