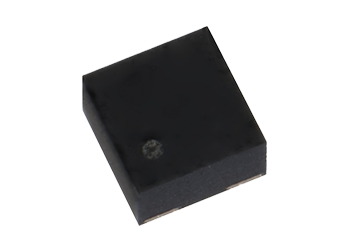

This IC is a temperature switch IC that senses the ambient temperature of the IC and switches the IC output at the detected temperature , and has the hysteresis function. The detection temperature can be selected in 1.0°C steps.
Applications
Air Conditioners
Measuring instruments
Machine tool
Office automation equipment
Logistics equipment
Handling・Packaging Machinery
FA Equipment
Medical devices
Robots
Home appliances
Download
Temperature Switch IC Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Outline |
Operating |
Operating |
Operating |
Operating |
Detecting |
Detecting |
Supply current |
|---|---|---|---|---|---|---|---|---|
| MM3488 | The MM3488 series has a detection temperature in the range of high temperature detection type: + 25 ° C ≤ TDET ≤ + 90 ° C, low temperature detection type: -20 ≤ TDET ≤ + 24 ° C. We are developing products in steps of 1.0 ° C. |
1.6 | 5.0 | -30 | 105 | -2 | 2 | 1.50 |
| MM3588 | The MM3588 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product has a control terminal (CE terminal) for turning the output on and off. |
1.6 | 5.0 | -30 | 125 | -2 | 2 | 1.50 |
| MM3688 | The MM3688 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product achieves an ultra-low current consumption of 0.12 μA typ., which is ideal for mobile products that are concerned about power consumption. |
1.6 | 5.0 | -40 | 125 | -2 | 2 | 0.12 |
