Digital Indicator

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Applications

Various weighing instruments

Download

Parts List
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Outline	Non-linearity [%F.S.]	Sampling speed [times/s]

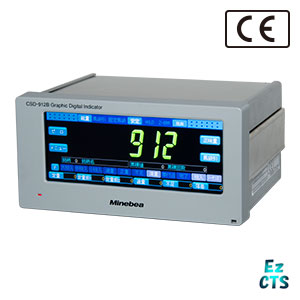

Graphic Digital Indicator CSD-912B-EX	6.2 inches liquid crystal touch panel display with excellent visibility TFT color and wide viewing angle. Waveform display of weighing status. 100 kinds of recipe measurement can be memorized in brand memory. 1000 times/s of high speed A/D conversion. RS-485 / serial interface as a standard function. CE mark applied.	0.01	1000

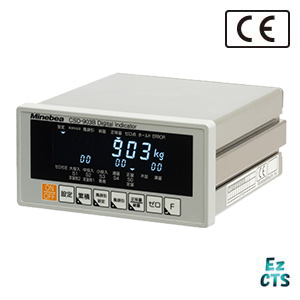

Digital Indicator CSD-903B-EX	Active standard that generously inherits the metrological know-how cultivated in the CSD-912. Various sequence mode control, VATN LCD (display color white, backlit) with character height of 11.55 mm, 18-digit sub-display and 16 status displays separate from the main display. Depth 136.5 mm, JIS B 7611-2:2015 Annex C (environmental test level H) compliant, CE Mark compliant (EN61326-1:2021)	0.01	200

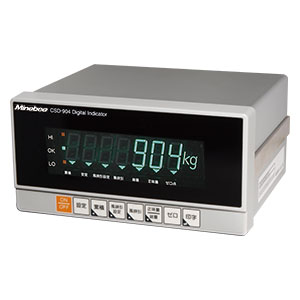

Digital indicator CSD-904-EX	Best for high accuracy (6 000 div.) scale application (More than 5 micro-volts per division minimum input.) Built-in linearizer (up to 3 points)	0.01	15

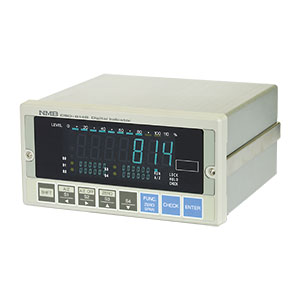

Digital indicator CSD-814B	Clear, large fluorescent tube display with 22 mm charactrer height, Ratio of load vs. rated capacity is clearly indicated with 11 dots bar indicator.	0.01	100

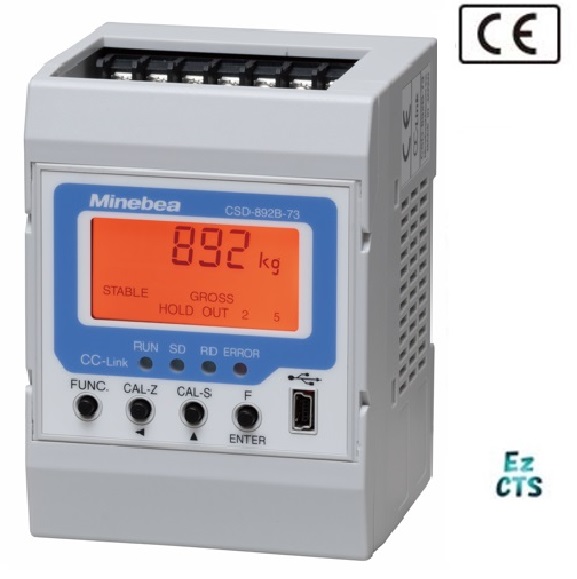

Weight conversion module CSD-892B series	High performance and palmtop size. Smart and fit model in FA system. Best for high speed and high resolution application. Equipped with CC-Link interface, RS-232C interface, RS-422/485 interface, current / voltage output and USB 2.0/1.1 interface. Built-in control panel type. CE mark applied.JIS B 7611-2:2015 Annex C (Environmental Test Level H/Level L).	0.01	500

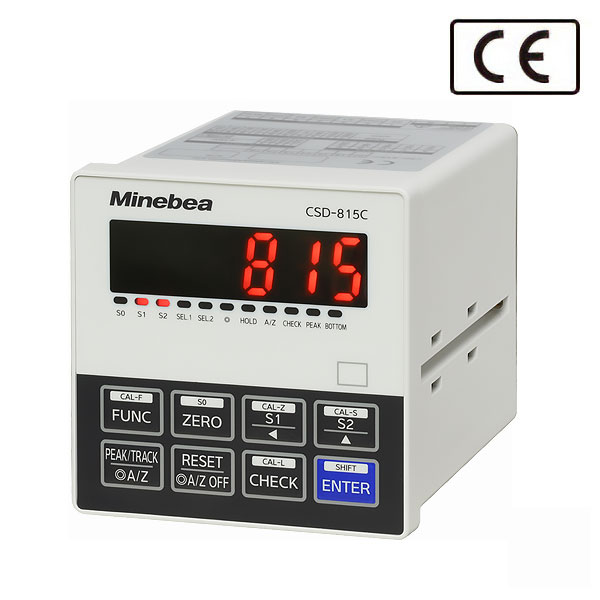

Digital Indicator CSD-815C	Conpact size (96 mm x 96 mm) digital indicator for strain gage applied transducer with peak hold function, CC-Link interface and CE mark applied.		200

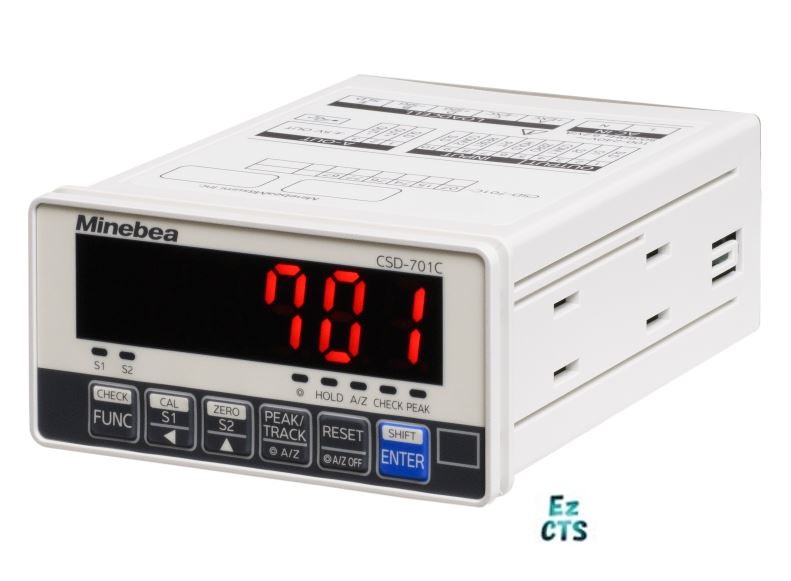

Digital Indicator　CSD-701C	CSD-701B successor model,Upgraded basic characteristics, Compact size (48 mm x 96 mm) with peak hold function,Newly added USB interface, EzCTS (sold separately) can be supported	0.02	100

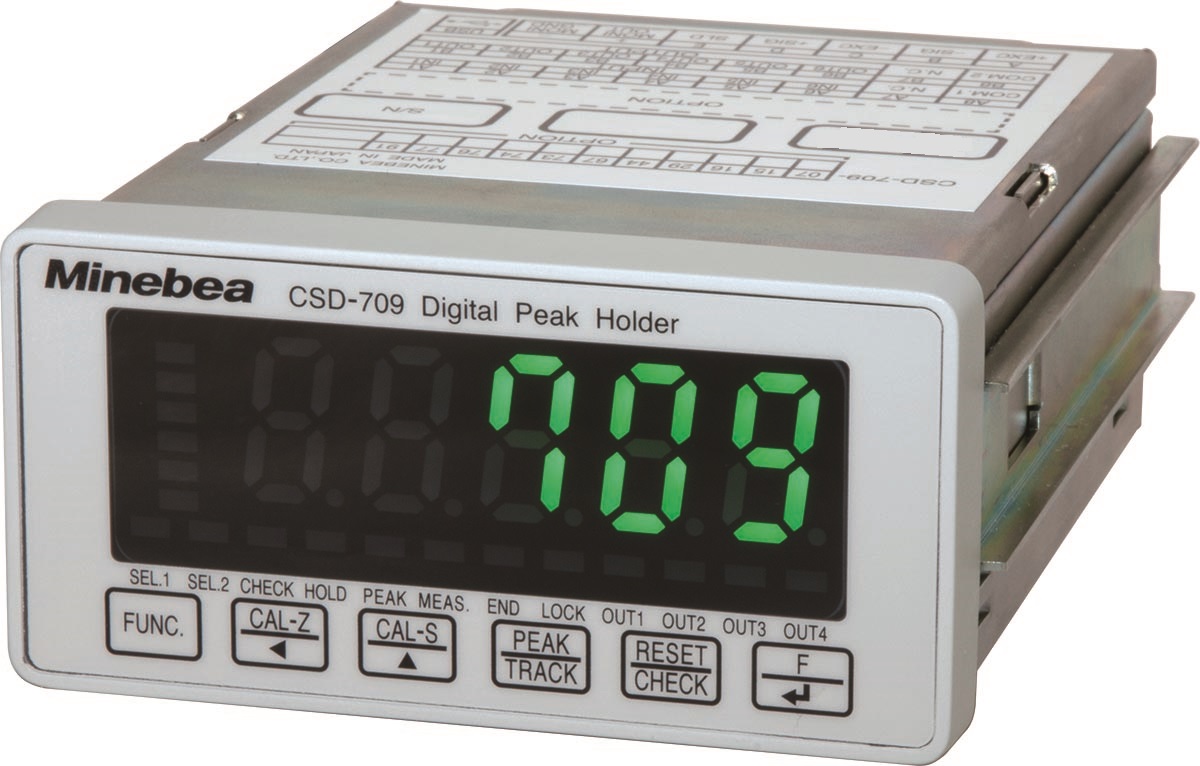

Digital Peak Holder CSD-709	Compact size and light weight. High sampling rate (4 000 times/s). Waveform display and condition setting by PC. Simplified calibration, Various interface.	0.02	4000

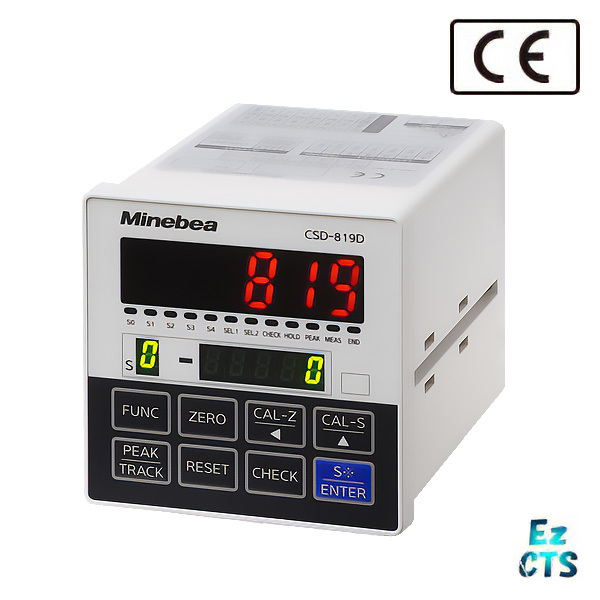

Digital Peak Holder CSD-819D	CSD-819C successor model,High sampling rate (2 000 times/s). Range of peak mode settings. CE mark applied.	0.025	2000

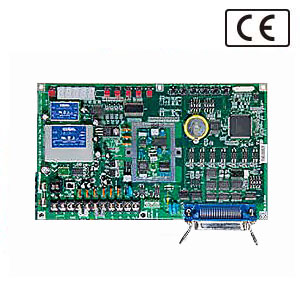

PCB type digital indicator CSD-581-15	DC24 V power supply voltage. Broad range of calibration function. BCD digital output.	0.01	100
Digital Moment limitter DML-802C	The hanging load and the operating radius are displayed and the alarm has been output. Japan Crane Association accepted product.		2

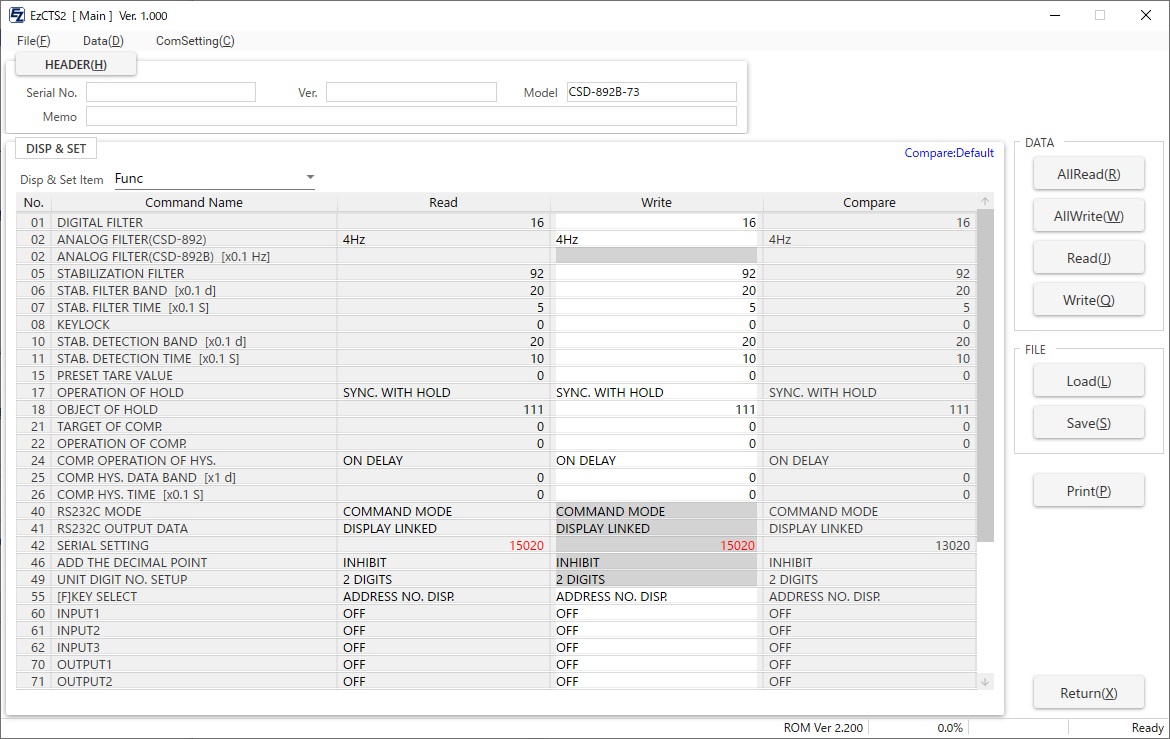

PC Software for communication with Digital Indicator(EzCTS2)	By using this software(EzCTS2), easier to set a digital indicator with PC. The parameter of a digital indicator can be managed with PC.
PR5410 Process Indicator	・PR5410 is a weighing module that achieves 10000e Class III level accuracy ・High speed conversion enables response times from 10 ms ・A 10/100 Mbits/s LAN adapter is built in ・Load cell,control input/output optocoupler,LAN adapter connector and RS232C interfaces are mounted on the back panel ・Enables actual load adjustment using weights,calibration of numerical input in mV/V,and load cell date input(smart calibration) ・Large display(height 18mm),cleary visible backlight LCD display ・OIML R76 10,000e ・Internal resolution:1/4,000,000
Process Controllers maxxis4 PR5500	・Data Integrity (DI) Support ・User management and password management functions included ・Compatible with load cells, digital load cells, platform scales, and electromagnetic platform scales (optional) ・Class of protection: IP65 (front panel section) ・Extensive options including RS-232C/RS485, analog and digital I/O ・Data backup and restore function (in SD memory card)

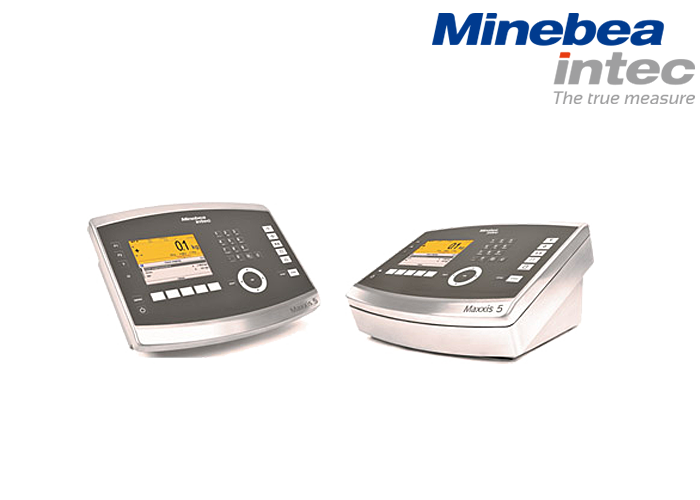

Process Controllers maxxis5 PR5900	・Data Integrity (DI) Support ・User management and password management functions included ・Compatible with load cells, digital load cells, platform scales, and electromagnetic platform scales (optional) ・Intrinsic safety explosion-proof circuit built-in (optional) ・Class of protection: IP65 (front panel section) ・Panel mount type (G1), desktop type (option G2), wall mount type (option G3) ・Extensive options including RS-232C/RS485, analog and digital I/O ・Data backup and restore function (in SD memory card)
