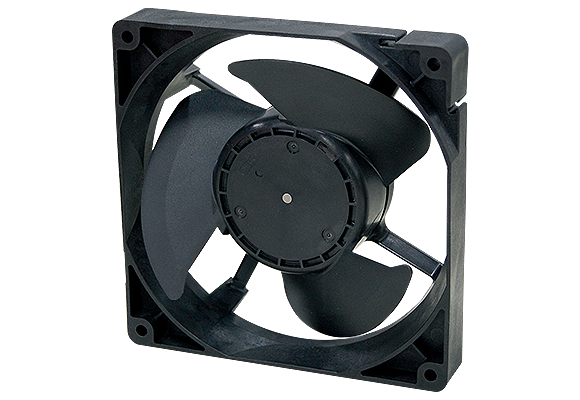

Refrigerator

Energy-saving design specialized for refrigerator applications.
It is the latest design that can be used for ice-resistant and dust-proof structures according to the part of use.

Search Filter

Download

Parts List
Engineering Information
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Size (W) [mm]	Size (H) [mm]	Thickness(L) [mm]	Rating Voltage [V]	Max. Air Flow lower limit [m3/min]	Max. Air Flow upper limit [m3/min]	Max. Static Pressure lower limit [Pa]	Max. Static Pressure upper limit [Pa]	Associated Data
06615JS for Evaporator	66	66	15	12	0.330	0.600	9.1	28.0	PDF product catalog
09225JS for Condenser	92	92	25	12, 24	0.680	1.590	14.9	64.0	PDF product catalog
09232JE for Evaporator	92	92	32	12	0.840	1.240	23.6	46.3	PDF product catalog
09232JS for Evaporator	92	92	32	12	1.000	1.450	30.5	65.0	PDF product catalog
11338JE for Evaporator	113	113	36	12	0.940	1.500	15.9	38.0	PDF product catalog
12537JE for Evaporator	125	125	37	12	1.620	2.170	24.8	42.9	PDF product catalog
12539JA for Condenser	125	125	39	12	1.330	1.620	20.4	30.2	PDF product catalog
12539JE for Evaporator	125	125	39	12	1.760	2.120	25.4	36.3	PDF product catalog
15047JA for Condenser	150	150	47	12	2.150	2.600	14.6	21.5	PDF product catalog
17240JA for Condenser	172	172	40	12	3.100	3.630	22.4	30.7	PDF product catalog
10030GE for Evaporator	100	100	30	12	0.860	1.050	32.9	50.7	PDF product catalog
12038GE for Evaporator	120	120	38	12	1.030	1.280	50.0	76.0	PDF product catalog
