Latch Lock Type 2.50mm Pitch DIP-PCB connector PI-011 Series
PI-011 Series
1. Uses glass-filled PBT and endure under 125℃
2. Design enabling parallel use without changing the board pitch
3. The terminal is used phosphor bronze with excellent creep resistance
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7020*2-2M |  |
-35 | 125 | Φ1.70 | *=6:AWG#30~22 *=9:AWG#26~22 |
DL0269_MCIPI-011_BI_CL.pdf | |||||

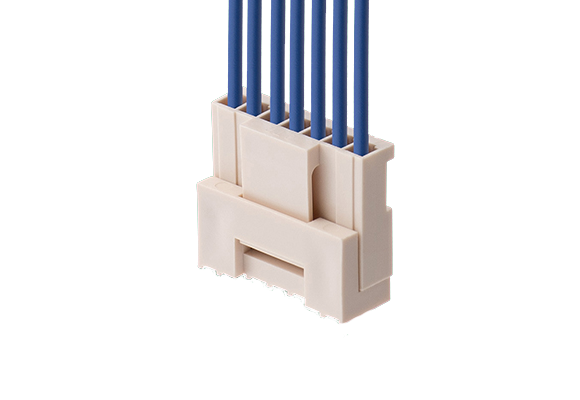

| PI-011-()F |  |
2~13 | 2.5 | Housing | -35 | 125 | DL0269_MCIPI-011_BI_CL.pdf | ||||

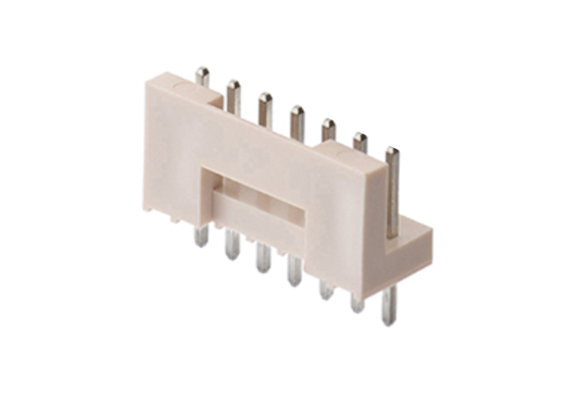

| PI-011-()M |  |
2~13 | 2.5 | Straight DIP | 3 | 1000V A.C.(r.m.s.) for a minute | -35 | 125 | DL0269_MCIPI-011_BI_CL.pdf | ||

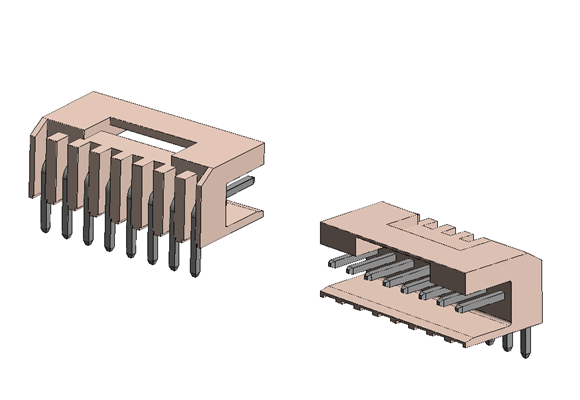

| PI-021-()M |  |
2~13 | 2.5 | Right-angle DIP |
3 | 1000V A.C.(r.m.s.) for a minute | -35 | 125 | DL0269_MCIPI-011_BI_CL.pdf |
