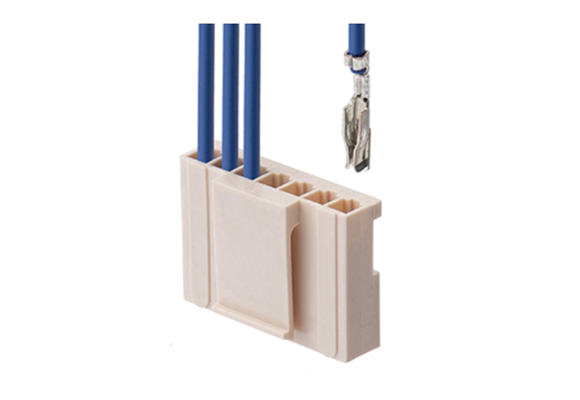

PI-011 Series
1. Uses glass-filled PBT and endure under 125℃
2. Design enabling parallel use without changing the board pitch
3. The terminal is used phosphor bronze with excellent creep resistance
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. PI-011-()F Pin Count 2~13 Pich
[mm]2.5 Mounting Method/
Wiring methodHousing Operating Temparature
Min
[deg.C]-35 Operating Temparature
Max
[deg.C]125
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

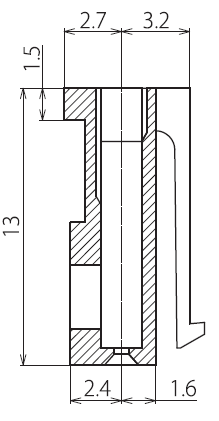

Please request the Engineering Drawing for the most current and accurate design information.
