Friction Lock Type 2.50mm Pitch DIP-PCB connector PI25 Series
PI25 Series
1. Male and Female mating are friction lock, and also side latch prevents mis-insertion
2. The "Pin Block" has a indication of minimum and maximum pin numbers
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 706404-2M |  |
-25 | 85 | Φ1.70 | AWG#30~22 | DL0272_MCIPI25_BI_CL.pdf | |||||

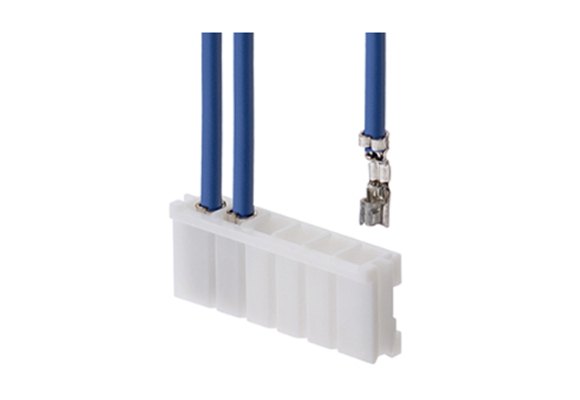

| PI25C()F |  |
2~7 | 2.5 | Housing | -25 | 85 | DL0272_MCIPI25_BI_CL.pdf | ||||

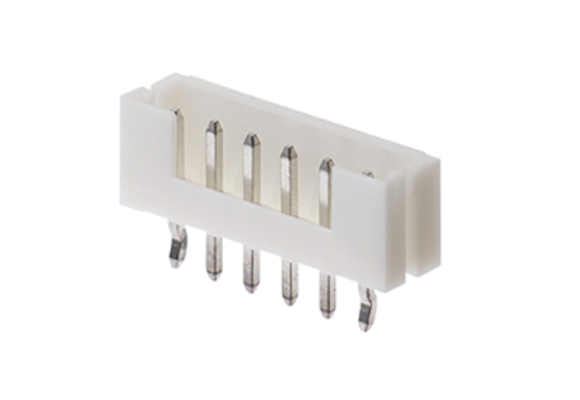

| PI25C()M-1 |  |
2~7 | 2.5 | Straight DIP | 3 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0272_MCIPI25_BI_CL.pdf |
