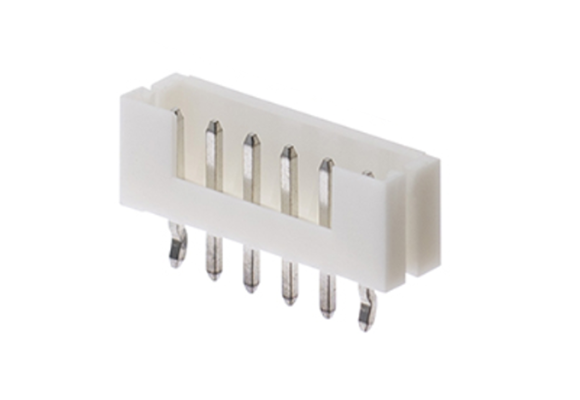

PI25 Series
1. Male and Female mating are friction lock, and also side latch prevents mis-insertion
2. The "Pin Block" has a indication of minimum and maximum pin numbers
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. PI25C()M-1 Pin Count 2~7 Pich
[mm]2.5 Mounting Method/
Wiring methodStraight DIP Current Rating
[A/Pin]3 Dielectric Withstanding
Voltage800V A.C.(r.m.s.) for a minute Operating Temparature
Min
[deg.C]-25 Operating Temparature
Max
[deg.C]85
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

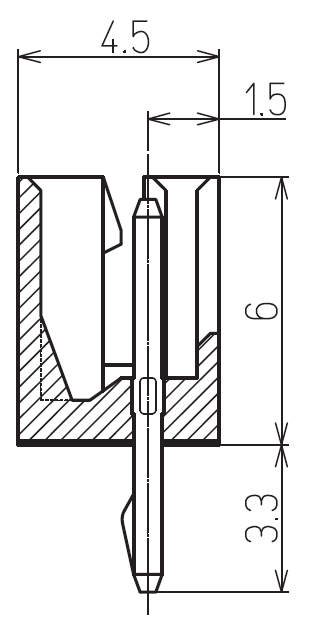

Please request the Engineering Drawing for the most current and accurate design information.
