High-speed transmission shielded connector for automotive applications TAK Series
TAK Series

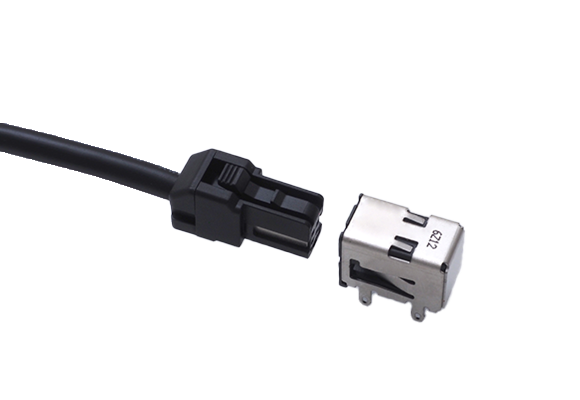

１．Capable LVDS, USB, CAN, Ethernet transmission
２．Clear locking sound by mold lock structure
３．7 coding available to avoid incorrect insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

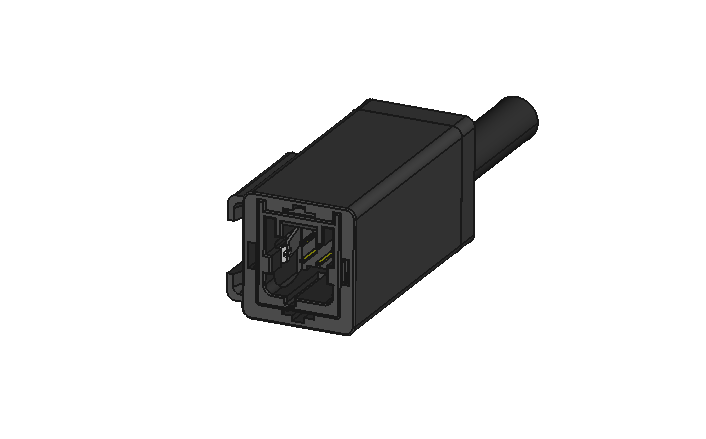

| TAK-A4SMCG#-*A+ |  |
4 | 2 | Inline/Crimping | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#32～22 | DL0117_HTKTAK_EN.pdf | DL0016_HTKTAK_EN_CL.pdf |

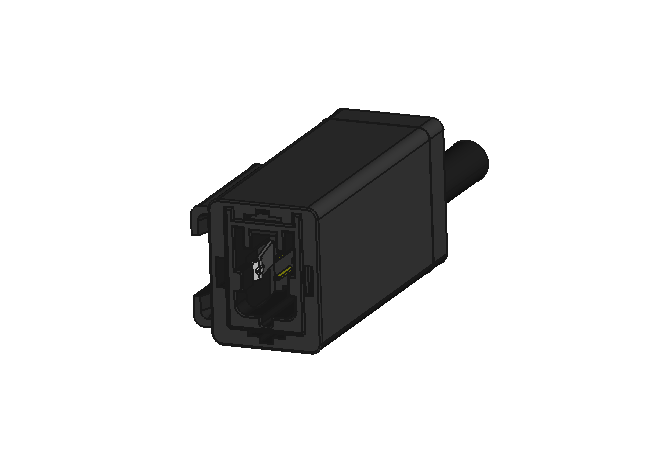

| TAK-A6SMCGB-AC+ |  |
6 | 2 | Inline/Crimping | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | AWG#26～22 | DL0118_HTKTAK_EN.pdf | DL0016_HTKTAK_EN_CL.pdf |
