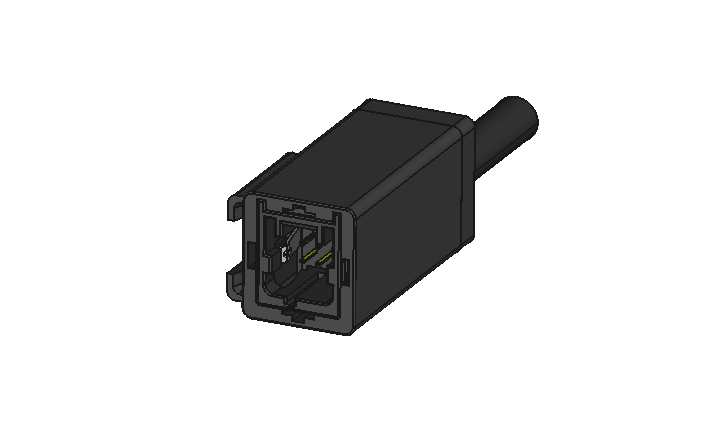

TAK-A6SMCGB-AC+

TAK Series
１．Capable LVDS, USB, CAN, Ethernet transmission
２．Clear locking sound by mold lock structure
３．7 coding available to avoid incorrect insertion

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. TAK-A6SMCGB-AC+
    Pin Count 6
    Pich
    [mm]    		 2
    Mounting Method/
    Wiring method    		 Inline/Crimping
    Current Rating
    [A/Pin]    		 1
    Dielectric Withstanding
    Voltage    		 500V A.C.(r.m.s.) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105
    Applicable Cable Diameter AWG#26～22

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
