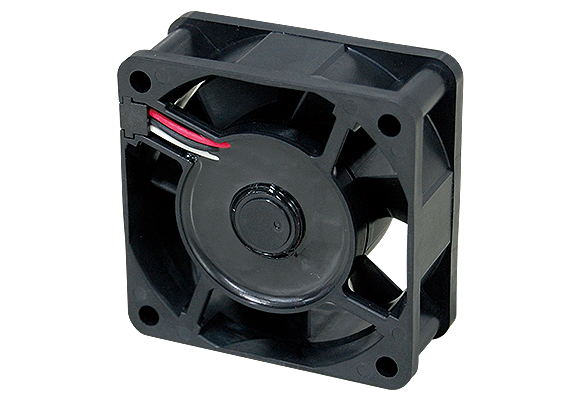

Industrial
Designed to achieve stable performance in severe environments and
it also allows individual designs of dust resistance, moisture resistance, water resistance, and oil resistance depending on the intended use.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Size |
Size |
Thickness(L) |
Rating Voltage |
Max. Air Flow |
Max. Air Flow |
Max. Static Pressure |
Max. Static Pressure |
Associated Data |
CAD Data Download |
|---|---|---|---|---|---|---|---|---|---|---|
| 04020VA | 40 | 40 | 20 | 12, 24 | 0.250 | 0.380 | 58.8 | 165.0 | PDF product catalog | 3D/2D CAD |
| 04028VA | 40 | 40 | 28 | 24 | 0.290 | 0.410 | 102.0 | 210.0 | PDF product catalog | 3D/2D CAD |
| 06015VA | 60 | 60 | 15 | 12, 24 | 0.450 | 0.550 | 48.3 | 67.7 | PDF product catalog | 3D/2D CAD |
| 06020VA | 60 | 60 | 20 | 24 | 0.700 | 0.700 | 100.0 | 100.0 | PDF product catalog | 3D/2D CAD |
| 06025VA | 60 | 60 | 25 | 24 | 0.680 | 1.110 | 107.0 | 244.0 | PDF product catalog | 3D/2D CAD |
| 06025VE Potting II | 60 | 60 | 25 | 12, 24 | 0.680 | 0.900 | 107.0 | 190.3 | PDF product catalog | 3D/2D CAD |
| 06025VC Aluminum | 60 | 60 | 25 | 12, 24 | 1.090 | 1.090 | 235.0 | 235.0 | PDF product catalog | |
| 08025VE Potting II | 80 | 80 | 25 | 12, 24 | 1.480 | 2.070 | 96.8 | 189.6 | PDF product catalog | 3D/2D CAD |
| 09225VA | 92 | 92 | 25 | 12, 24 | 1.930 | 2.730 | 80.0 | 150.0 | PDF product catalog | 3D/2D CAD |
| 09232VA | 92 | 92 | 32 | 24 | 2.600 | 3.000 | 225.0 | 275.0 | PDF product catalog | 3D/2D CAD |
| 12038VA(E-Type) | 120 | 120 | 38 | 24 | 4.000 | 6.900 | 150.0 | 370.0 | PDF product catalog | 3D/2D CAD |
| 15025PA | 150 | 172 | 25 | 24, 48 | 6.100 | 6.800 | 118.0 | 145.0 | PDF product catalog | 3D/2D CAD |
| 15050VA | 150 | 172 | 50 | 24, 48 | 8.000 | 9.800 | 232.0 | 312.0 | PDF product catalog | 3D/2D CAD |
| 17250VA | 172 | 172 | 50 | 24, 48 | 8.000 | 9.800 | 232.0 | 312.0 | PDF product catalog | 3D/2D CAD |
| 06038RA | 60 | 60 | 38 | 12, 24 | 1.510 | 1.930 | 308.3 | 480.0 | PDF product catalog | 3D/2D CAD |
| 08038RA | 80 | 80 | 38 | 24 | 1.750 | 2.600 | 115.0 | 260.0 | PDF product catalog | 3D/2D CAD |
| 09238RA(D-type) | 92 | 92 | 38 | 24 | 3.360 | 4.000 | 187.0 | 260.0 | PDF product catalog | 3D/2D CAD |
| 06025MA | 60 | 60 | 25 | 12, 24 | 0.540 | 1.050 | 40.2 | 143.0 | PDF product catalog | 3D/2D CAD |
| 11938MA | 119 | 119 | 38 | 24 | 5.750 | 5.750 | 229.0 | 229.0 | PDF product catalog | 3D/2D CAD |
