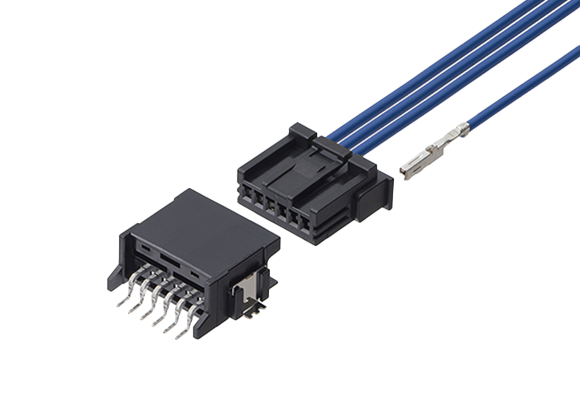

2.00 mm pitch single SMT connector for automotive applications KA01 Series
KA01 Series
１．The world’s smallest connector compatible w/ ASEEX0.5sq
２．Double locking structure with side retainer
３．Unique PIN structure (low insertion/extraction and high contact reliability)
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

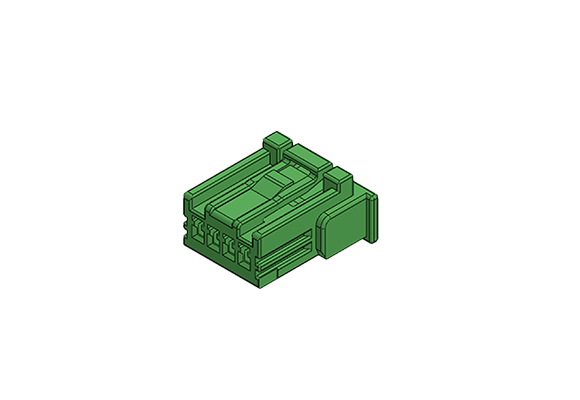

| KA01C6-0()B0 |  |
2,6,9 | 2 | -40 | 125 | DL0017_MCIKA01_BI_CL.pdf | |||||

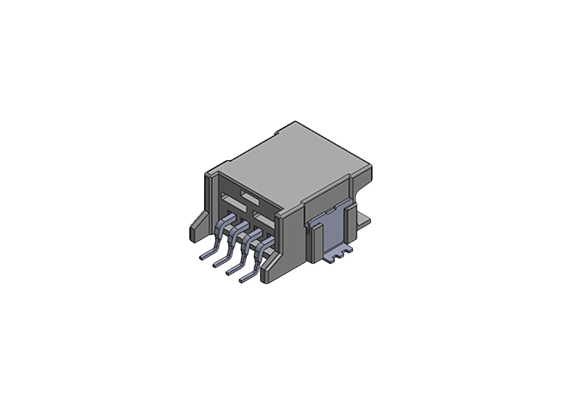

| KA01T3-0()BA |  |
2,6,9 | 2 | Right-angle SMT | 4 | 1,000V A.C.(r.m.s.) for a minute | -40 | 125 | DL0017_MCIKA01_BI_CL.pdf | ||

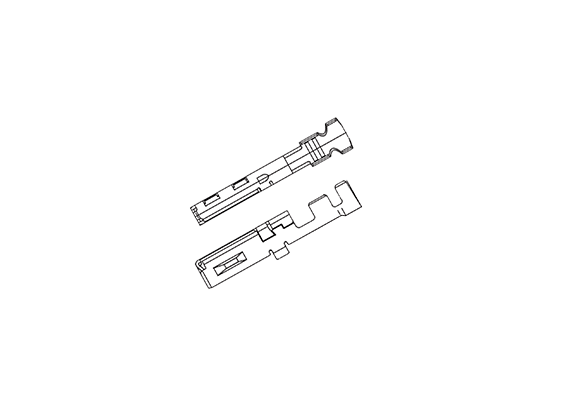

| KA01 Contact |  |
Crimping | -40 | 125 | Φ1.70 | AWG#22～20 | DL0017_MCIKA01_BI_CL.pdf |
