Board to Cable Connecters 2.00 mm pitch single SMT connector for automotive applications

KA01 Contact

Outline

KA01 Series
1.The world’s smallest connector compatible w/ ASEEX0.5sq
2.Double locking structure with side retainer
3.Unique PIN structure (low insertion/extraction and high contact reliability)

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. KA01 Contact
Mounting Method/
Wiring method
Crimping
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
125
Cable Jacket Diameter
[Φ]
Φ1.70
Applicable Cable Diameter AWG#22~20

Table of P/N

Parts No. Mounting Method/
Wiring method
Operating Temparature
Min
[deg.C]
Operating Temparature
Max
[deg.C]
Cable Jacket Diameter
[Φ]
Applicable Cable Diameter Catalog

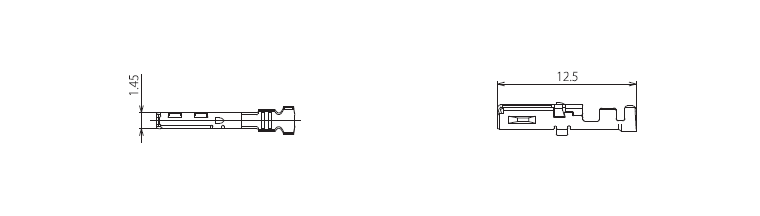

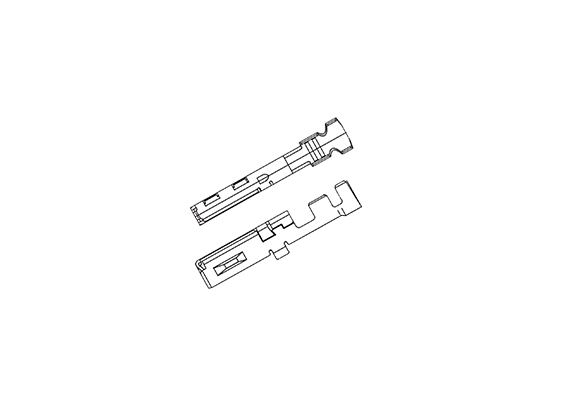

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
