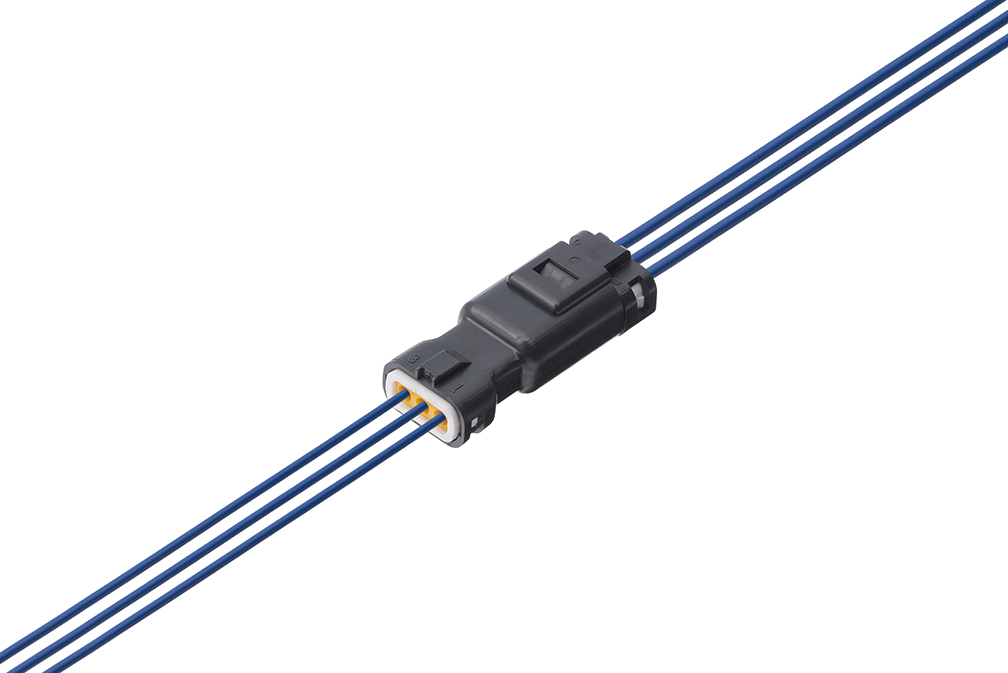

2.50mm Pitch Waterproof Connector
CB01 Series
１．Branch type available
２．Latch lock improves operational ability
３．Extensive adoption record
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

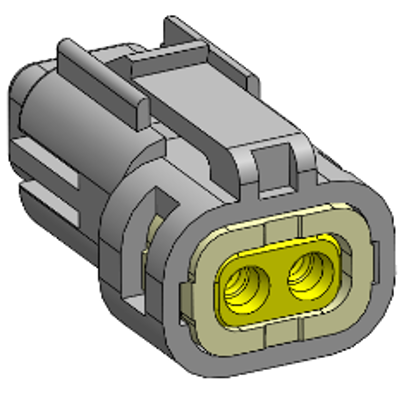

| CB01A6-0()B0-0* |  |
2,3,5 | 2.50 | IP67 | Crimping | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.30 ＊=2:Φ1.30～Φ1.70 |
DL0006_MCICB01_BI_CL.pdf | |

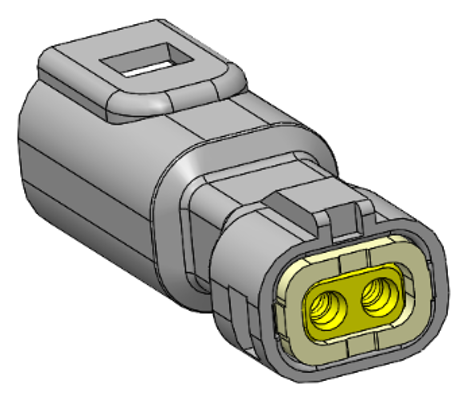

| CB01A5-0()B0-0* |  |
2,3,5 | 2.50 | IP67 | Crimping | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.00～Φ1.30 ＊=2:Φ1.30～Φ1.70 |
DL0006_MCICB01_BI_CL.pdf | |

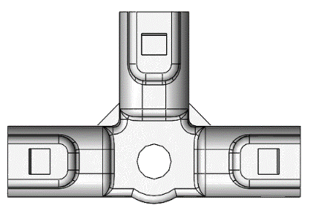

| CB01A5-02BA |  |
2 | 2.50 | IP67 | Crimping | 5.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0007_MCICB01_BI_CL.pdf | ||

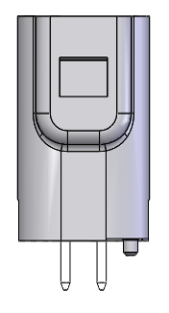

| CB01A6-0()BA |  |
2,3,5 | 2.50 | IP67 | DIP | 3.00 MAX | 1,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0006_MCICB01_BI_CL.pdf | ||

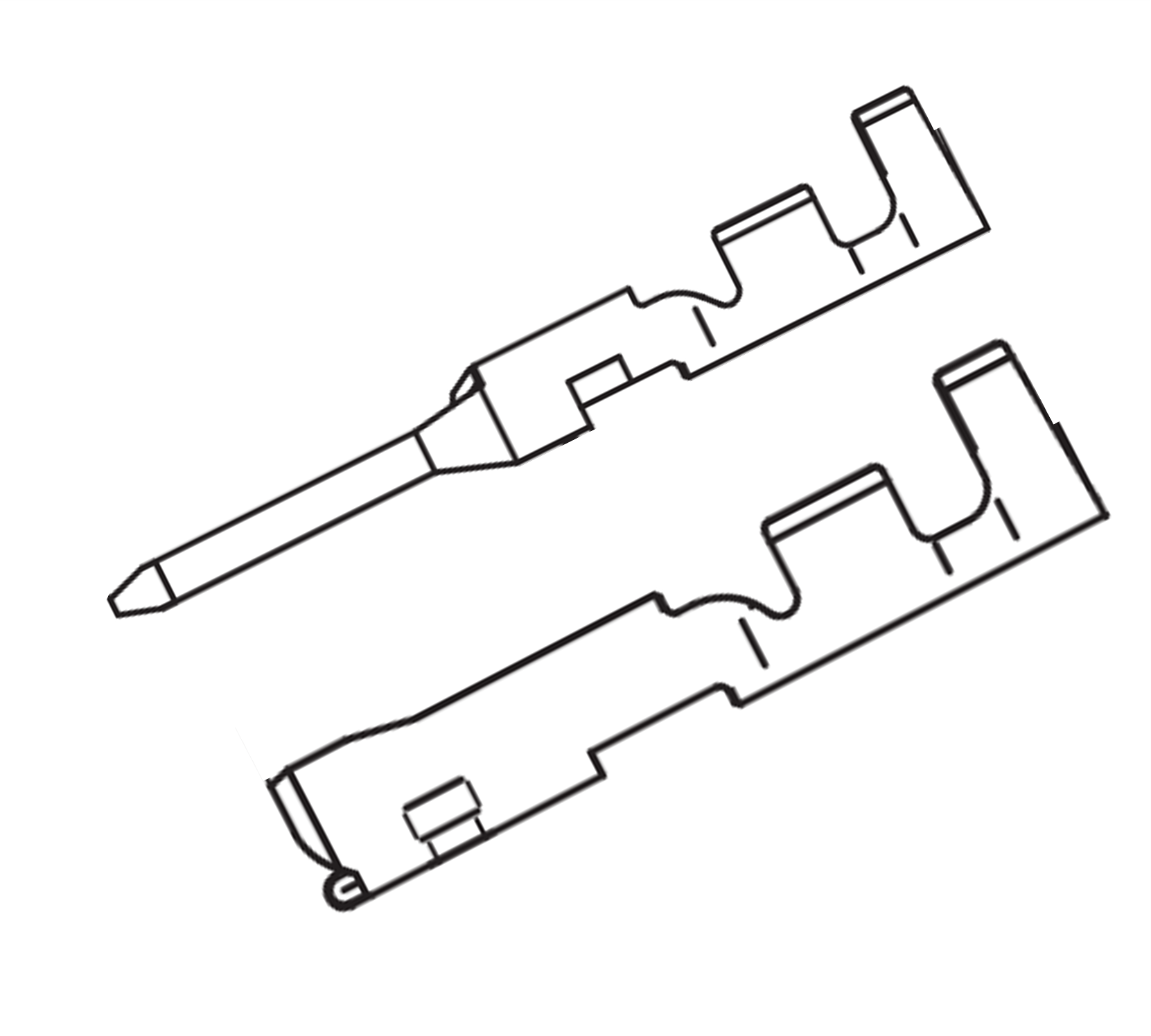

| CB01C*-010A |  |
Crimping | -40 | 105 | Φ1.60 MAX | AWG#28～22 | DL0006_MCICB01_BI_CL.pdf | |||||
| CB01C*-020A |  |
Crimping | -40 | 105 | Φ1.70 MAX | AWG#22～20 | DL0006_MCICB01_BI_CL.pdf |
