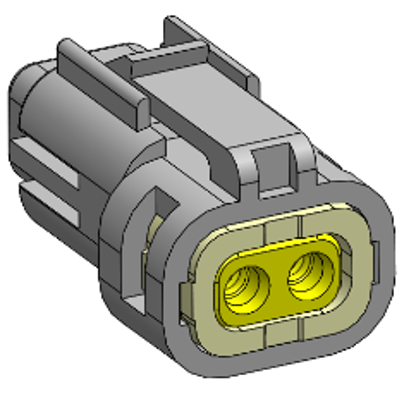

Outline
CB01 Series
１．Branch type available
２．Latch lock improves operational ability
３．Extensive adoption record
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Specifiacations
| Parts No. | CB01A6-0()B0-0* |
|---|---|
| Pin Count | 2,3,5 |
| Pich [mm] |
2.50 |
| Waterproof Grade | IP67 |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
3.00 MAX |
| Dielectric Withstanding Voltage |
1,000V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |
| Cable Jacket Diameter [Φ] |
＊=1:Φ1.00～Φ1.30 ＊=2:Φ1.30～Φ1.70 |

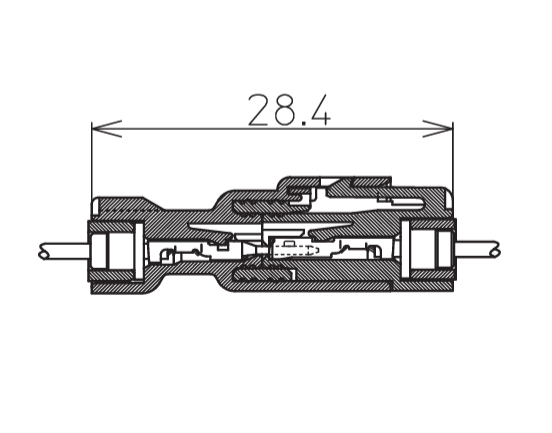

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
