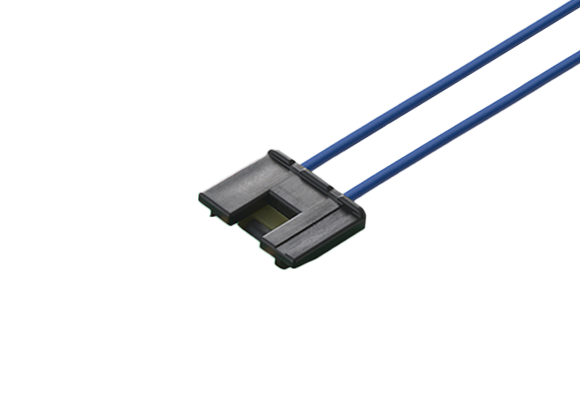

Card edge connector for automotive applications

DA01 Series
1.Direct connection to board
2.Retention force by large mating lock
3.Adopted Separate and Offset design to PIN contact point
【Model Description】
()・・・ Number of pins
*/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
---|---|---|---|---|---|---|---|---|---|

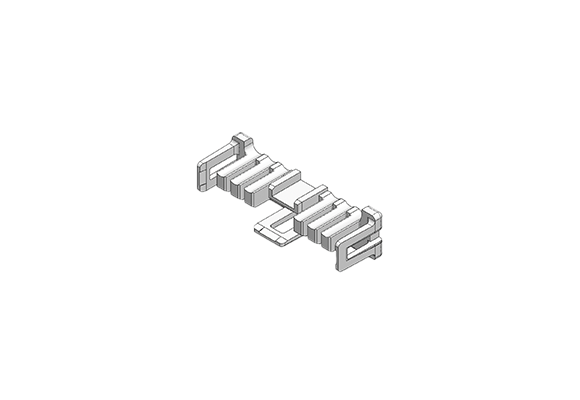

DA01H6-0()B0 | ![]() |
2,4 | 2.5 | -40 | 125 | DL0019_MCIDA01_BI_CL.pdf | |||

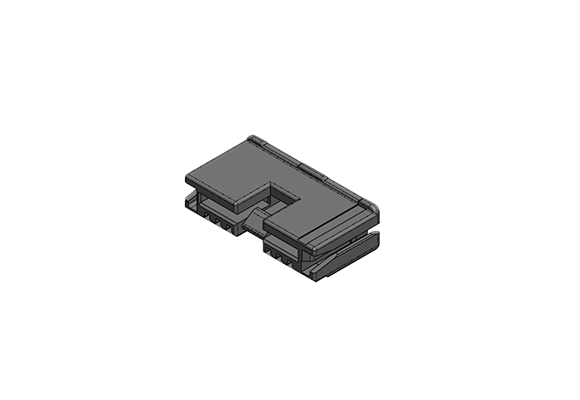

DA01H0-0()G0 | ![]() |
2,4 | 2.5 | -40 | 125 | DL0019_MCIDA01_BI_CL.pdf | |||

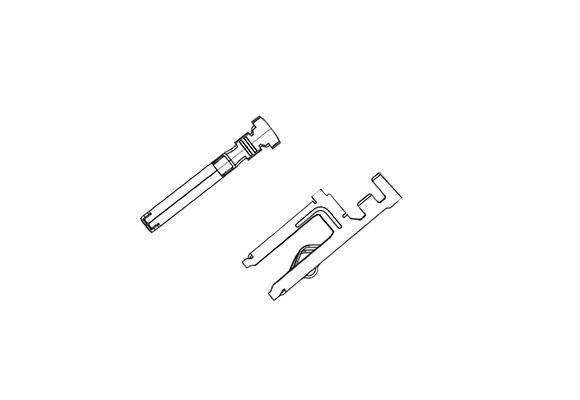

DA01C6-0*0A | ![]() |
Crimping | -40 | 125 | *=1:Φ1.60 *=2:Φ2.00 |
*=1:AWG#24~22 *=2:AWG#22~20 |
DL0019_MCIDA01_BI_CL.pdf |
