Board to Cable Connecters Card edge connector for automotive applications

DA01C6-0*0A

Outline

DA01 Series
1.Direct connection to board
2.Retention force by large mating lock
3.Adopted Separate and Offset design to PIN contact point

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. DA01C6-0*0A
Mounting Method/
Wiring method
Crimping
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
125
Cable Jacket Diameter
[Φ]
*=1:Φ1.60
*=2:Φ2.00
Applicable Cable Diameter *=1:AWG#24~22
*=2:AWG#22~20

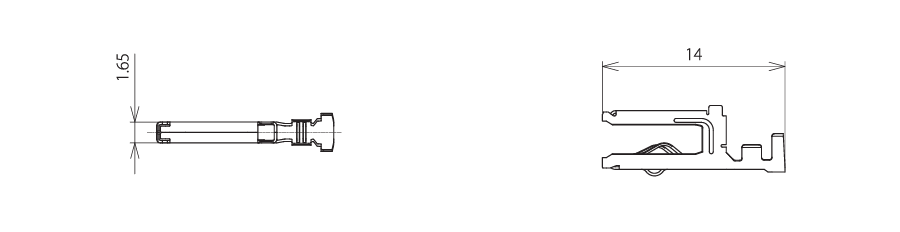

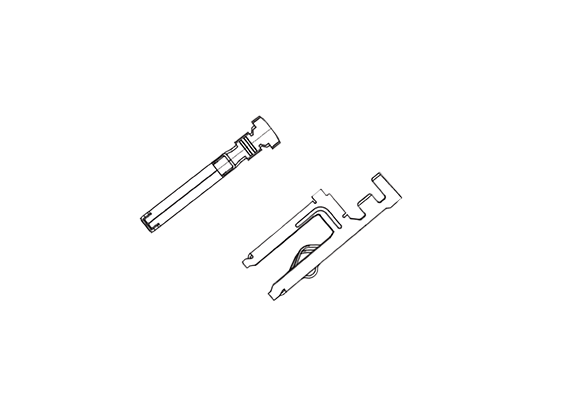

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
