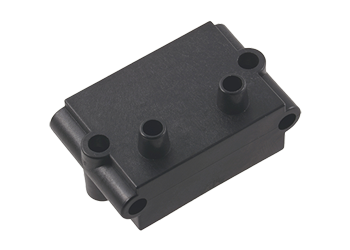

Differential Pressure Sensor
This sensor provides a digital output for low differential pressure. The output is compensated for sensor-specific variations and temperature characteristics, eliminating the need for sensor calibration by the user. The interface is I2C.
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Product name |
Pressure Type |
Associated Data |
Supply |
Operating |
Operating |
Current |
Pressure accuracy |
Pressure |
Conversion Time |
Interface |
Package Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MMR940 | Differential Pressure | PDF product catalog | 3.0 to 3.6 | 0 to 50 | ±2 / ±4 / ±7 / ±10 | 800 | ±20 /±40 /±70 / ±100 | 1.8 / 0.9 / 0.4 / 0.2 | 0.4 / 0.8 / 1.6 / 3.2 | I2C | 29.0 x 18.0 x 17.2 |
