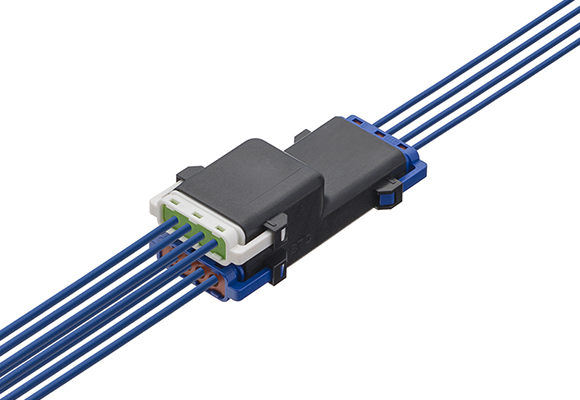

4.40mm Pitch Waterproof IDC Branch Connector
CK01 Series
１．Achieves a maximum rated current of 7A, making it suitable for use in power circuits
２．Supports branching relay, allowing for branching of electrical circuits
３．Features a robust lock structure positioned on both sides
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
4.40mm Pitch Waterproof IDC Branch Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CK01A6-04*A |  |
4 | 4.40 | IP67 | IDC | 0.3sq:6.00 MAX 1.25sq:9.00 MAX |
1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=N:Small Size Φ1.30～1.60 | DL0008_MCICK01_BI_CL.pdf |

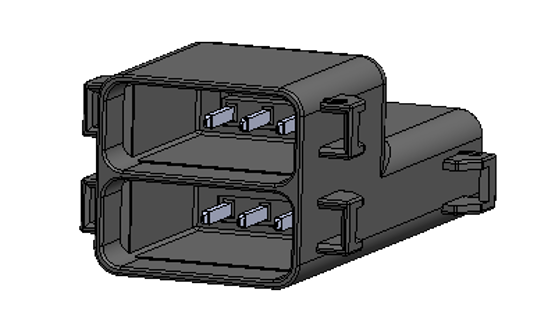

| CK01Y5-04BA |  |
4 | 4.40 | IP67 | IDC | 0.3sq:6.00 MAX 1.25sq:9.00 MAX |
1,000V A.C.(r.m.s) for a minute | -40 | 105 | ＊=A:Large Size Φ2.10～2.70 | DL0008_MCICK01_BI_CL.pdf |
