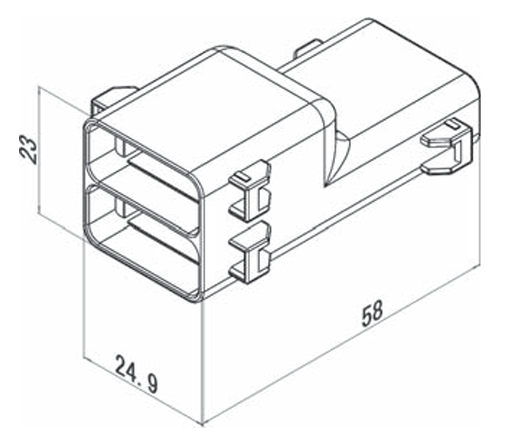

CK01Y5-04BA

CK01 Series
１．Achieves a maximum rated current of 7A, making it suitable for use in power circuits
２．Supports branching relay, allowing for branching of electrical circuits
３．Features a robust lock structure positioned on both sides

【Model Description】
()・・・ Number of pins
＊・・・ Product specification

  • Parts No. CK01Y5-04BA
    Pin Count 4
    Pich
    [mm]    		 4.40
    Waterproof Grade IP67
    Mounting Method/
    Wiring method    		 IDC
    Current Rating
    [A/Pin]    		 0.3sq:6.00 MAX
    1.25sq:9.00 MAX
    Dielectric Withstanding
    Voltage    		 1,000V A.C.(r.m.s) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105
    Cable Jacket Diameter
    [Φ]    		 ＊=A:Large Size Φ2.10～2.70

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
