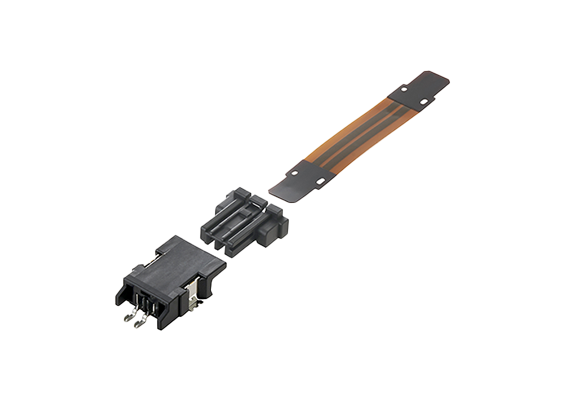

FPC connector for automotive applications LH01Series
LH01 Series
１．FPC can be used both side available
２．Incorrect insertion-proof construction (retainer /FPC mounting part)
３．Inertial locking structure
*We kindly request that you prepare the FPC (Flexible Printed Circuit) in the shape and material of your choice.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
FPC connector for automotive applications LH01Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Catalog |
|---|---|---|---|---|---|---|---|---|---|

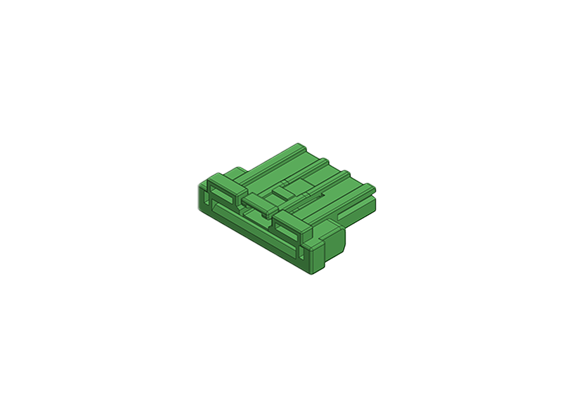

| LH01A6-0()B0-0* |  |
2,4 | 2.5 | -40 | 125 | DL0020_MCILH01_BI_CL.pdf | |||

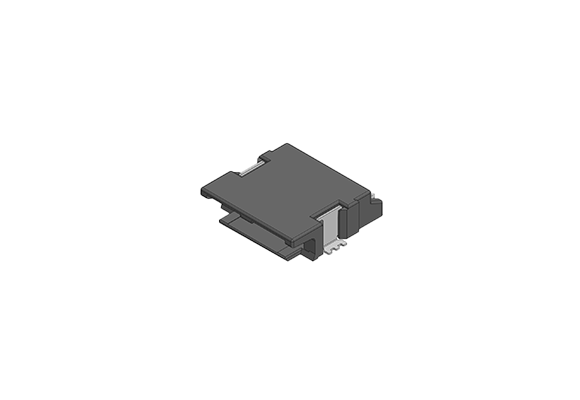

| LH01T5-0()B#-0* |  |
2,4 | 2.5 | Right-angle SMT | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 125 | DL0020_MCILH01_BI_CL.pdf |
