Board to Cable Connecters FPC connector for automotive applications

LH01T5-0()B#-0*

Outline

LH01 Series
1.FPC can be used both side available
2.Incorrect insertion-proof construction (retainer /FPC mounting part)
3.Inertial locking structure
*We kindly request that you prepare the FPC (Flexible Printed Circuit) in the shape and material of your choice.

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. LH01T5-0()B#-0*
Pin Count 2,4
Pich
[mm]
2.5
Mounting Method/
Wiring method
Right-angle SMT
Current Rating
[A/Pin]
3
Dielectric Withstanding
Voltage
1,000V A.C.(r.m.s.) for a minute
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
125

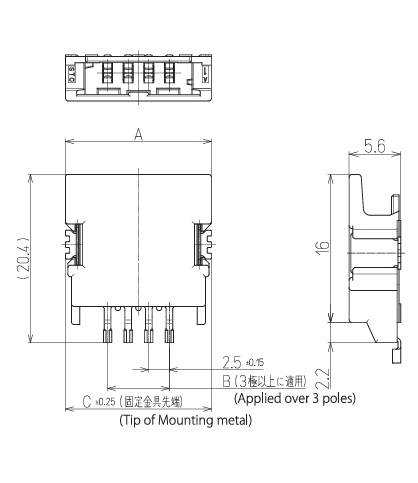

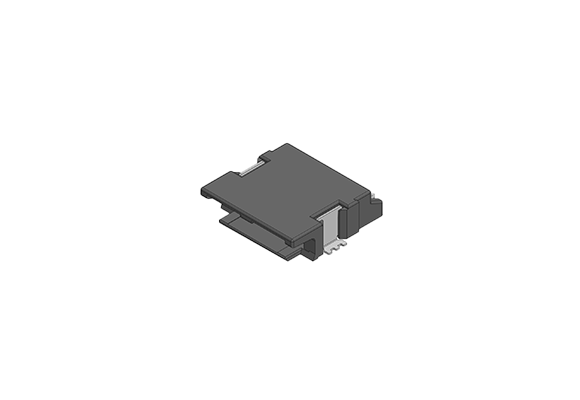

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
