Sensing Devices

Tie bar measurement system

What is tie bar Gage Measurement System
It is a tensionmeter using the strain gage, and the system to measure the clamping force and the opening force by installing to the tie bar such as an injection molding machine.
・ All of bonding the strain gage and additional workers to the tie rod are not necessary.
・ The stability of the temperature characteristic has been maintained by developing a special strain gage.
・ Please choose the mounting attachment device from 2 varieties for inspectin use that can be easily detached, or for control use with cheap cost and excellent long term stability
・ Clamping force can be recorded nad controled by retrieving the data from the indicator to the PC.
Applied example
・ Balance adjustment
Aiming at the adjustment of the tightening force of the fittings to become even by measuring the difference of clamping force distributed to the tie bar.
・ Detect the overload to the tie bar.
・ Operation management
Clamping force is recorded by using the PC.
・ Control
Use for control the tightening operation.

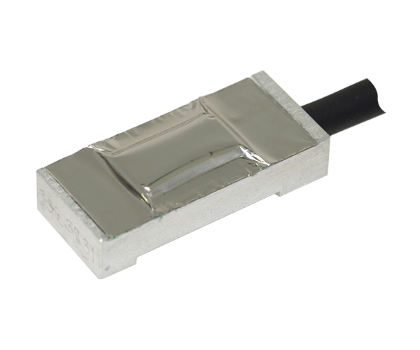

Parts Product image Outline
