Strain Gage type pressure transducer
Download
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
External view |
Overview |
Rated capacity |
|---|---|---|---|

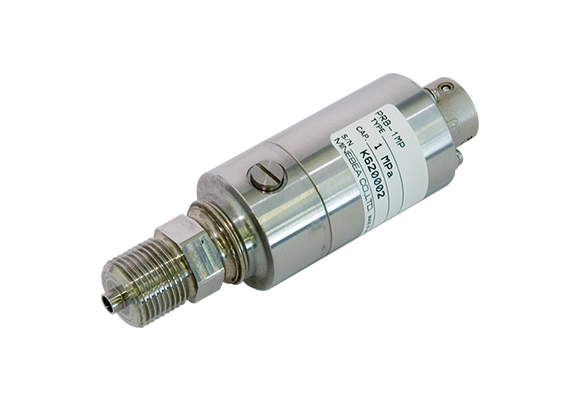

| High reliability standard type pressure transducer PRB series |  |
Small size and light weight. Easy to attach and remove. Plentiful product line with wide pressure range. |
1 MPa to 100 Mpa |
| Small and high responce type pressure transducer PRC series |  |
Flash diaphragm method high response type. small size, light weight, easy to attach and remove. |
1 MPa to 100 Mpa |
| Small type pressure transducer PRJ series for high / low temperature measurement |  |
For high temperature (150 ℃) to low temperature (-40℃), small size and light weight, easy to attach and remove. | 1 MPa to 10 MPa |
| High pressure type pressure transducer STD series |  |
For high pressure range, The pressure receiving diaphragm is an integration structure with screw | 200 MPa to 500 Mpa |
| Flash diaphragm type pressure transducer PRO series |  |
Compact and light weight type. Screw M10 x P1.0 High response, No need to bleed air in the pressure inlet |
2 MPa to 20 Mpa |
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
