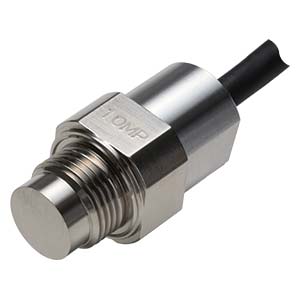

Small and high responce type pressure transducer PRC series

Features

・High response typ with flash diaphragm.
・Compact size, Easy mounting or detaching

【Application】
Gas Combustion Pressure Measurement Systems,Agitators and Conveyors for Viscous & Granular Materials,Depth Monitoring Devices for Fisheries

scroll

Specification name	Specification contents
Rated capacity	1 Mpa ~ 100 MPa
Safe overload	150 %R.C.
Ultimate overload	300 %R.C.
Rated output	1.5 mV/V±0.015 mV/V (PRC-1MP:1 mV/V(+0.2、-0.1)mV/V)
Non-linearity	0.5 %R.O.
Hysteresis	0.5 %R.O.
Repeatability	0.5 %R.O.
Excitation, recommended	3 V or less
Excitation, maximum	6 VDC
Zero balance	±0.225 mV/V (PRC-1MP：±0.25mV/V)
Input resistance	120 Ω±1.2 Ω
Output resistance	120 Ω±1.2 Ω
Insulation resistance	1 000 MΩ or more. (50 VDC) (between lead and main body.)
Temp. range, compensated	-10 ℃ ~ 50 ℃
Temp. range, safe	-10 ℃ ~ 75 ℃
Temp. effect on zero	0.8 %R.O./10 ℃
Temp. effect on output	0.8 %LOAD/10 ℃
Connector	PRC03-32A10-7F10.5
Cable	φ6.3, 4 -cores 30cm cable directly attached with NDI-7P-J (Jack) at the cable end
Class of protection	IP64 or equivalent
Material of element	Stainless steel
Mounting screw	G3/8{PF}

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [Mpa]	Ultimate overload [%R.C.]	Rated output [mV/V]	Tolerance of rated output [mV/V]	Non-linearity [%R.O.]	Hysteresis [%R.O.]	Repeatability [%R.O.]	Natural frequency [KHz]	Weight(Approx.) [g]	CAD files[DXF]	3D CAD files [STEP]
PRC-1MP	1	300	1	0.15	0.5	0.5	0.5	26	120	prc1_50mp.dxf	PRC-1MP.STEP
PRC-2MP	2	300	1.5	0.15	0.5	0.5	0.5	37	120	prc1_50mp.dxf	PRC-2MP.STEP
PRC-5MP	5	300	1.5	0.15	0.5	0.5	0.5	56	120	prc1_50mp.dxf	PRC-5MP.STEP
PRC-10MP	10	300	1.5	0.15	0.5	0.5	0.5	83	120	prc1_50mp.dxf	PRC-10MP.STEP
PRC-20MP	20	300	1.5	0.15	0.5	0.5	0.5	109	120	prc1_50mp.dxf	PRC-20MP.STEP
PRC-50MP	50	300	1.5	0.15	0.5	0.5	0.5	174	120	prc1_50mp.dxf	PRC-50MP.STEP
PRC-100MP	100	300	1.5	0.15	0.5	0.5	0.5	292	120	prc100mp.dxf	PRC-100MP.STEP
