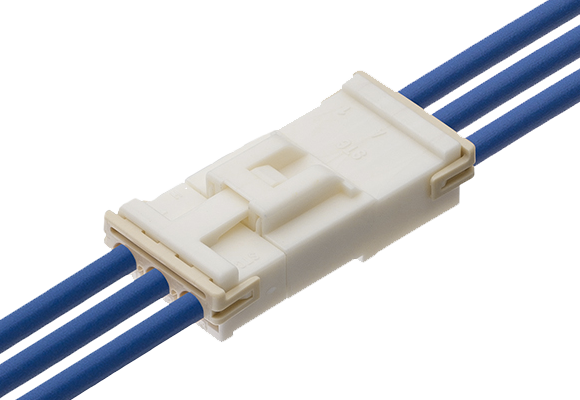

6.20mm Pitch Inline Connector CL50 Series
CL50 Series
1.Shape for high contact stability applied
2."Back Retainer" which will support terminal retention force can be attached to the Housing
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
6.20mm Pitch Inline Connector CL50 Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|

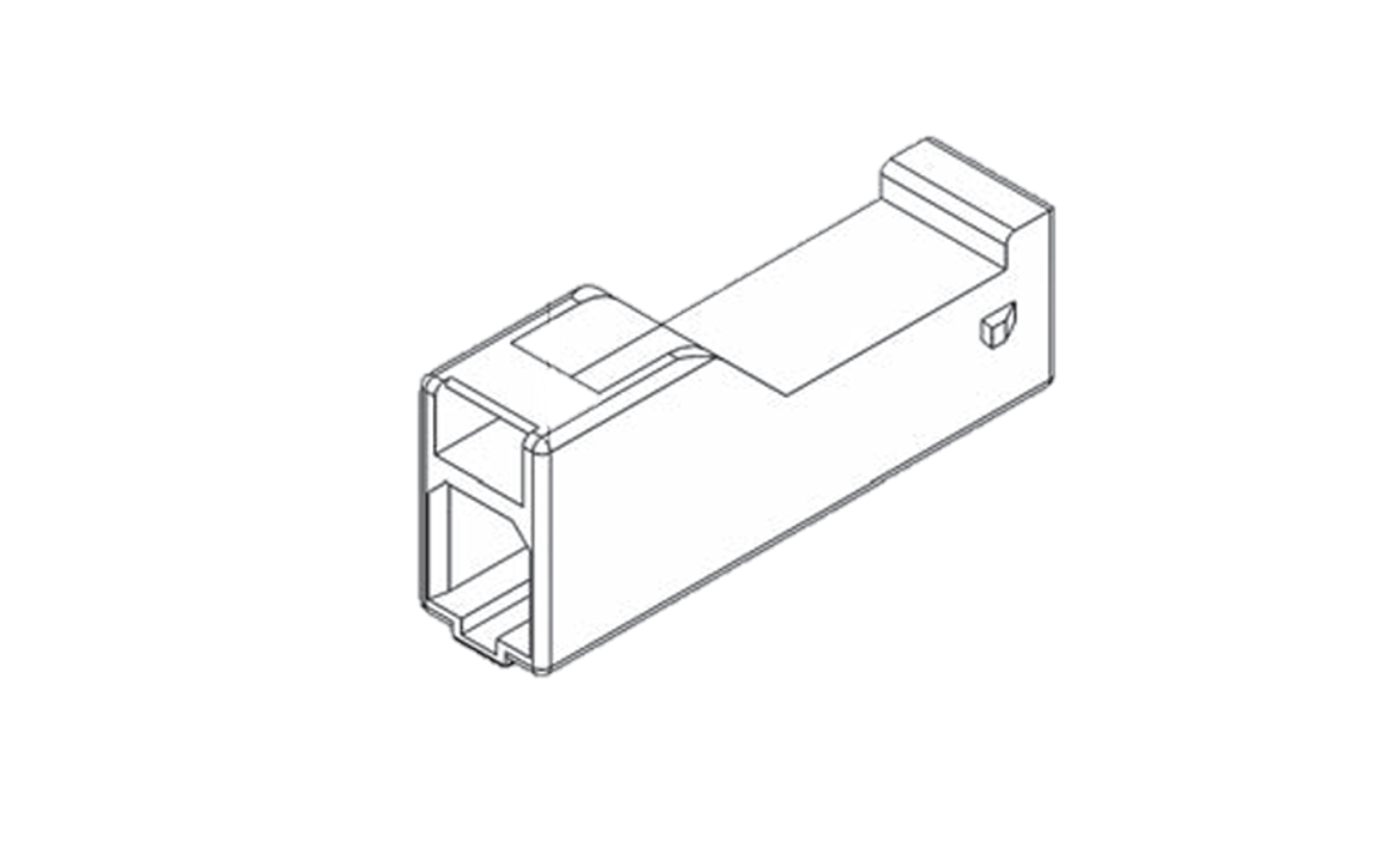

| CL50H6-0()N0 |  |
1,2,3 | 6.2 | 1P:21A 2P:21A 3P:20A |
2,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0127_MCICL50_BI_CL.pdf | ||

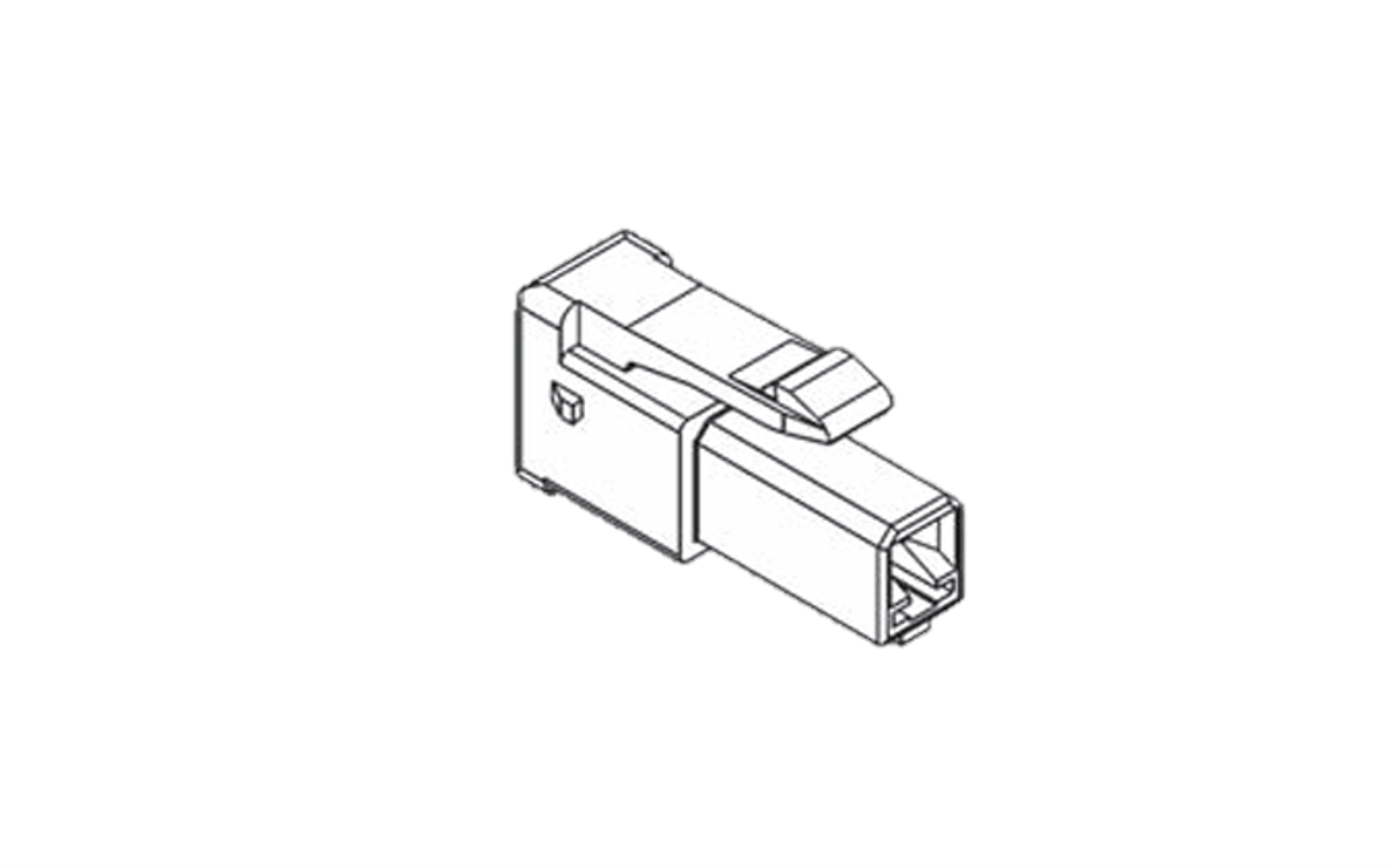

| CL50H5-0()N0 |  |
1,2,3 | 6.2 | 1P:21A 2P:21A 3P:20A |
2,000V A.C.(r.m.s) for a minute | -40 | 105 | DL0127_MCICL50_BI_CL.pdf | ||

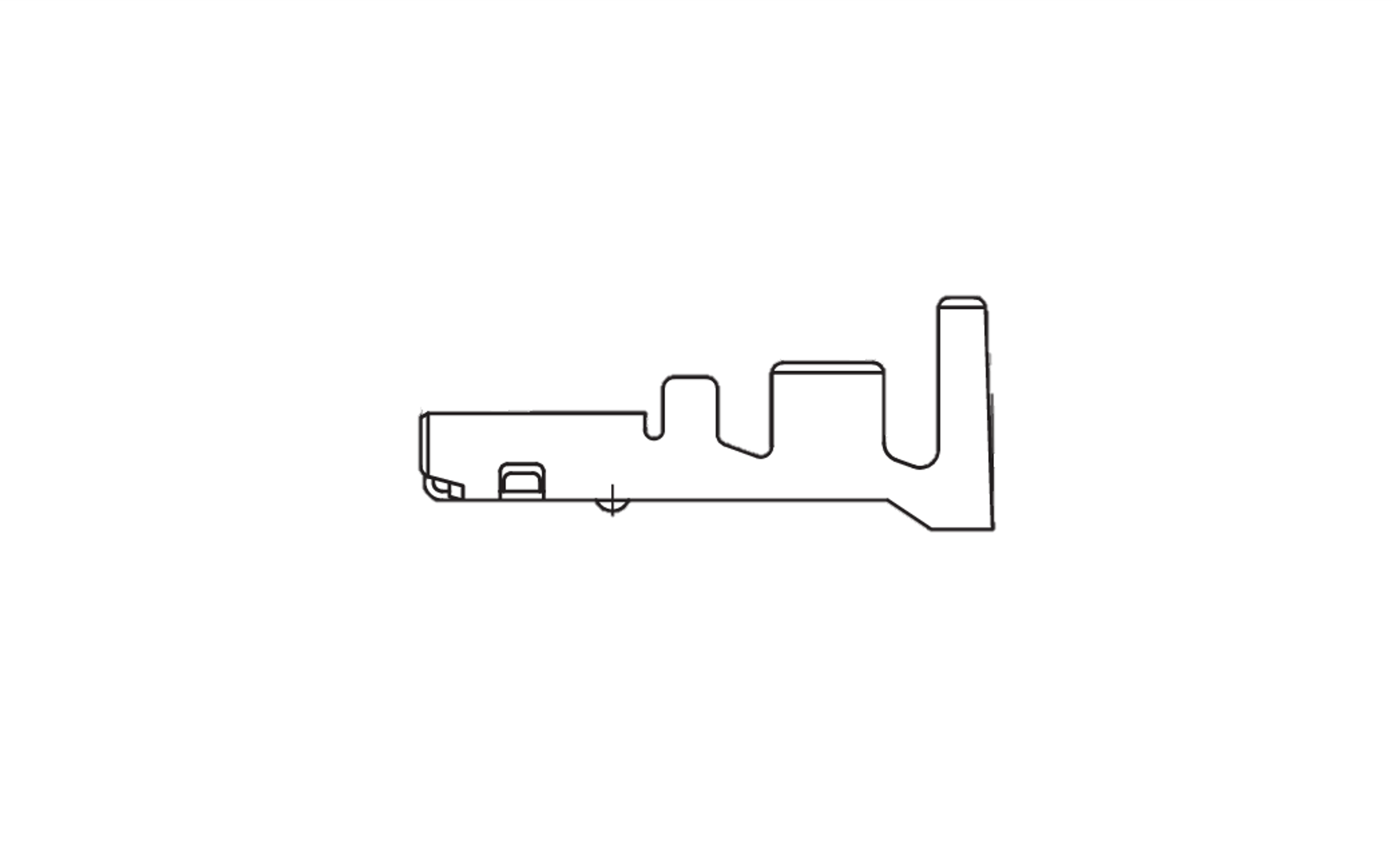

| CL50C5-0＊0A |  |
-40 | 105 | ＊=1:Φ4.10 ＊=2:Φ3.77 ＊=3:Φ2.91 |
＊=1:AWG#14~12 ＊=2:AWG#18~14 ＊=3:AWG#22~18 |
DL0127_MCICL50_BI_CL.pdf | ||||

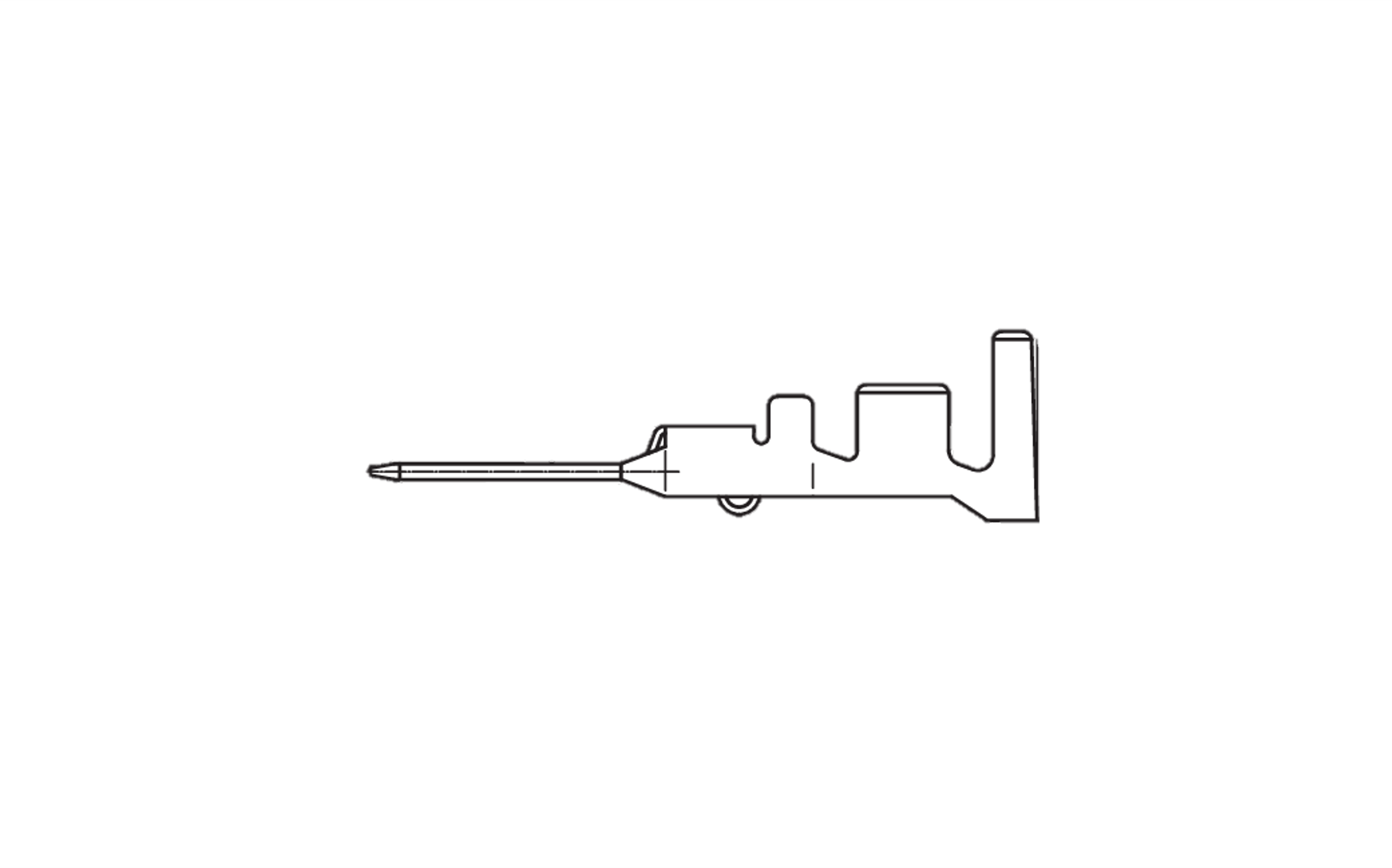

| CL50C6-0＊0A |  |
-40 | 105 | ＊=1:Φ4.10 ＊=2:Φ3.77 ＊=3:Φ2.91 |
＊=1:AWG#14~12 ＊=2:AWG#18~14 ＊=3:AWG#22~18 |
DL0127_MCICL50_BI_CL.pdf | ||||

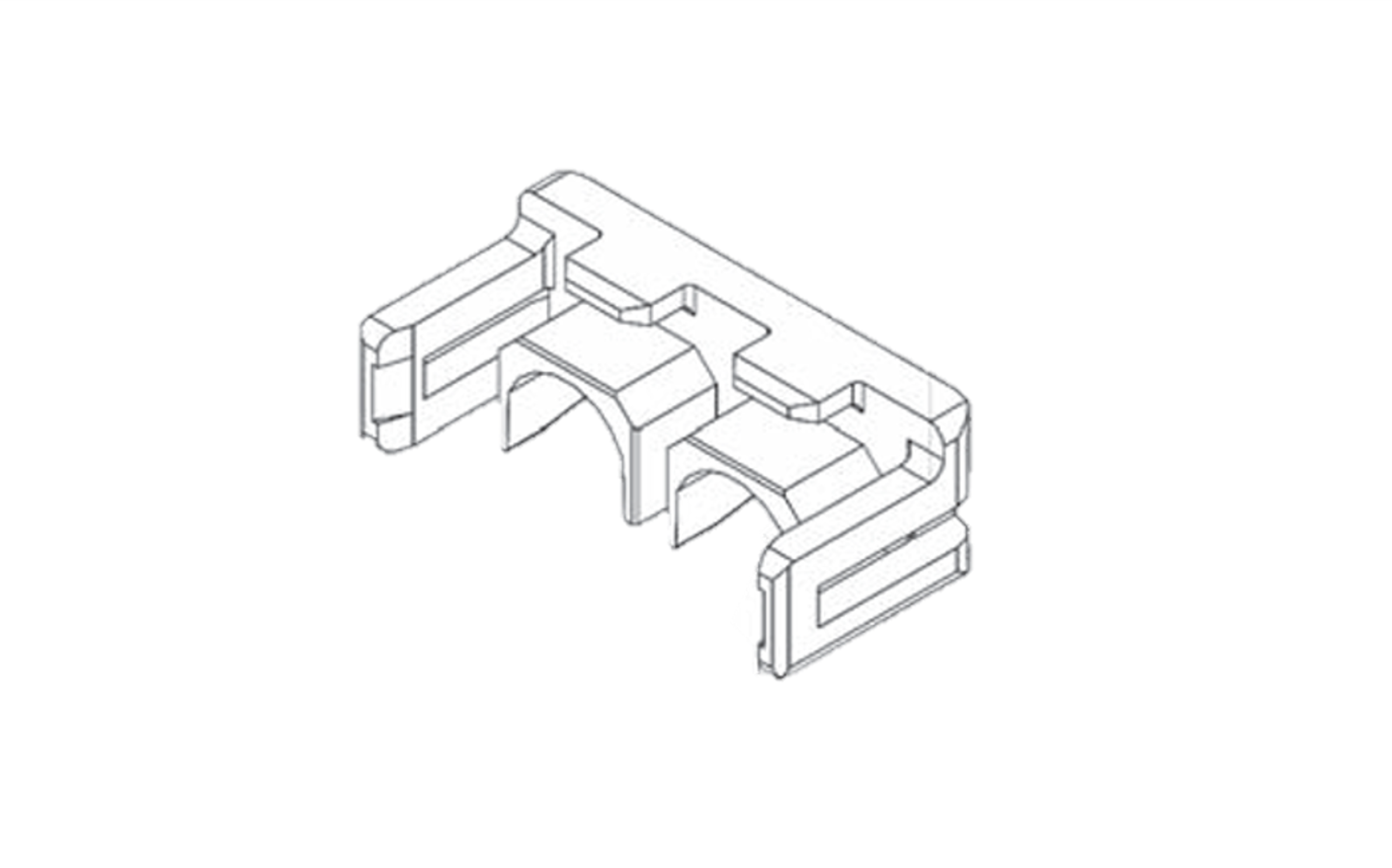

| CL50H8-02N0 |  |
DL0127_MCICL50_BI_CL.pdf |
