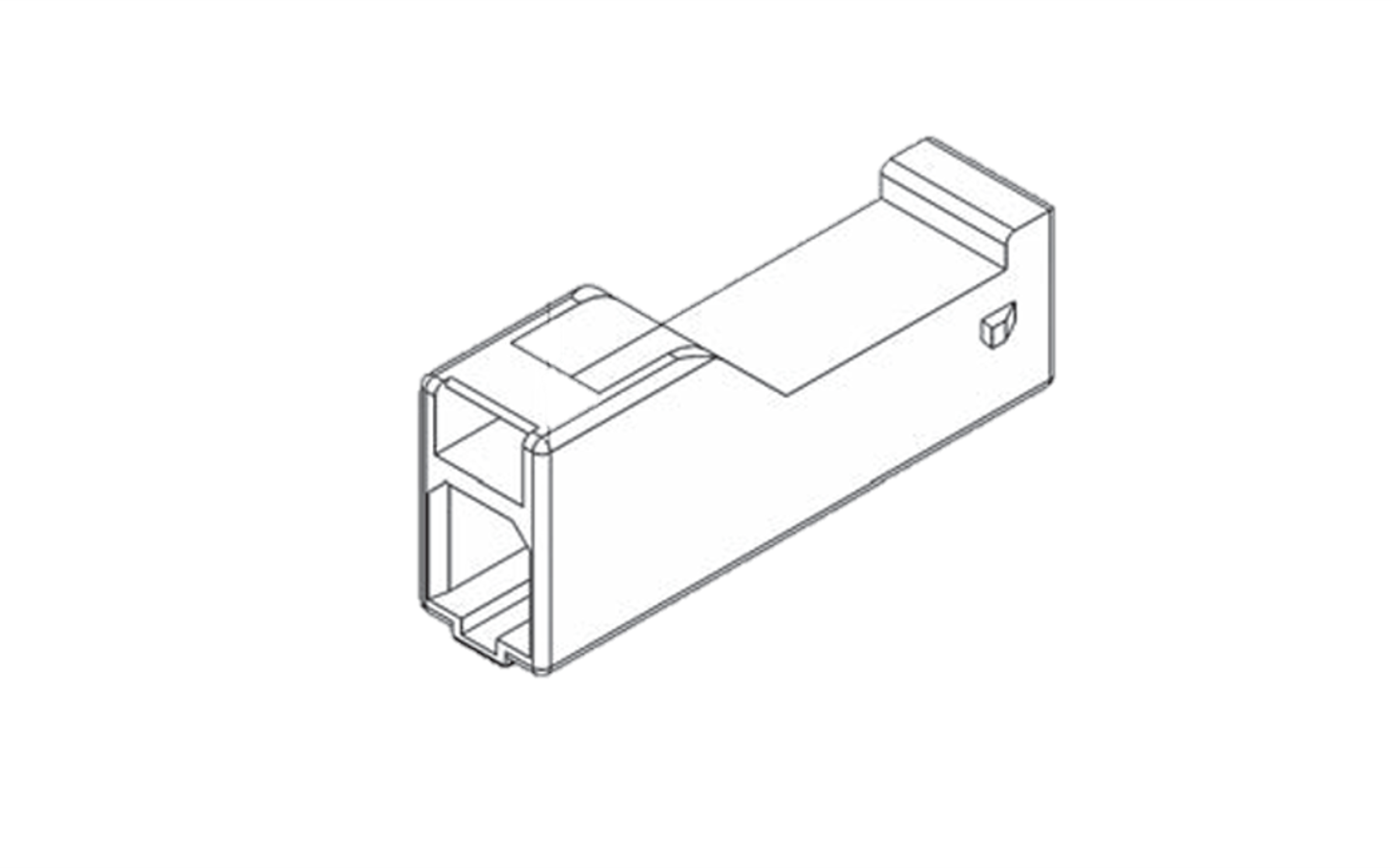

CL50H5-0()N0

CL50 Series
1.Shape for high contact stability applied
2."Back Retainer" which will support terminal retention force can be attached to the Housing

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. CL50H5-0()N0
    Pin Count 1,2,3
    Pich
    [mm]    		 6.2
    Current Rating
    [A/Pin]    		 1P:21A
    2P:21A
    3P:20A
    Dielectric Withstanding
    Voltage    		 2,000V A.C.(r.m.s) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
