CL50 Series
1.Shape for high contact stability applied
2."Back Retainer" which will support terminal retention force can be attached to the Housing
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

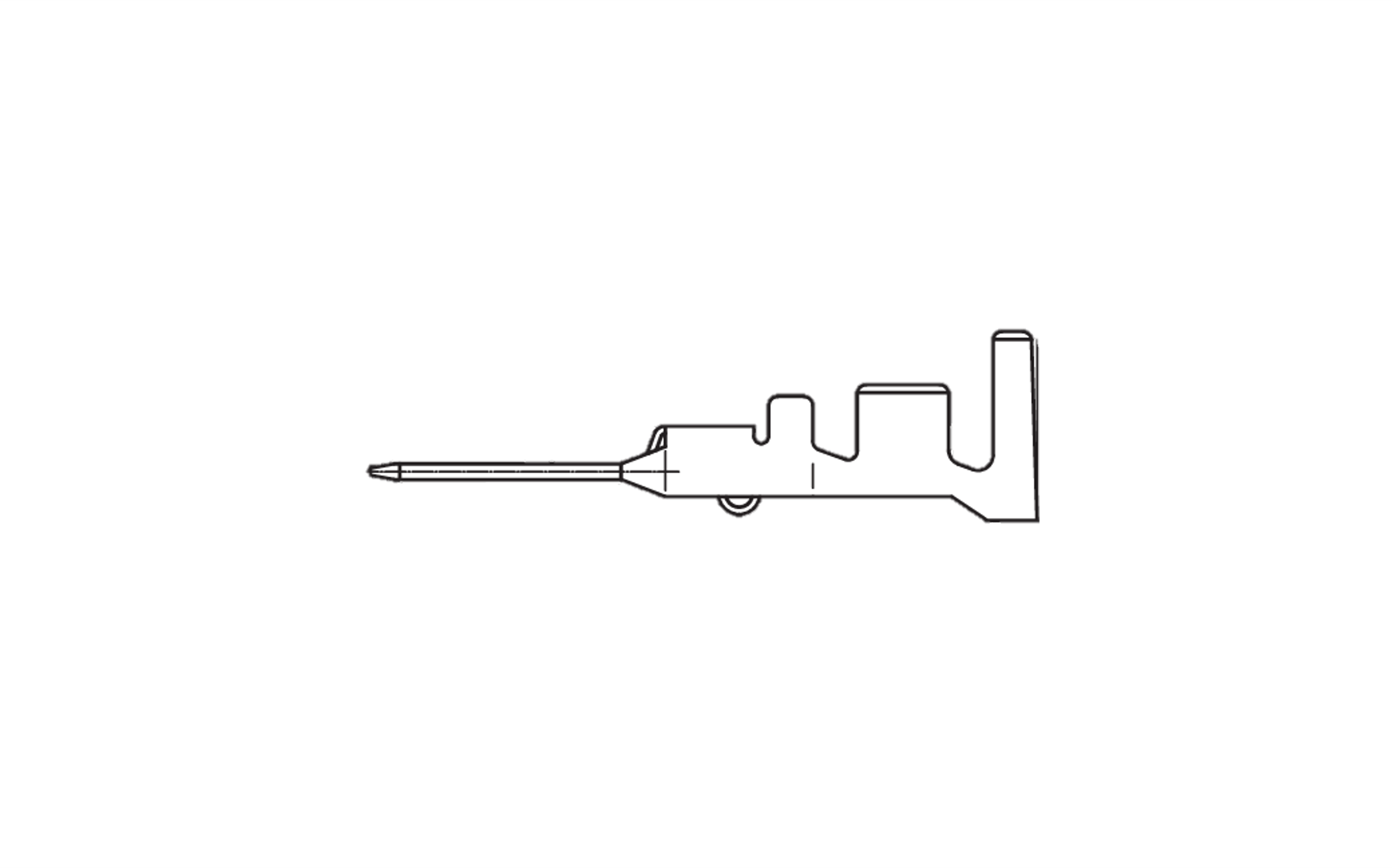

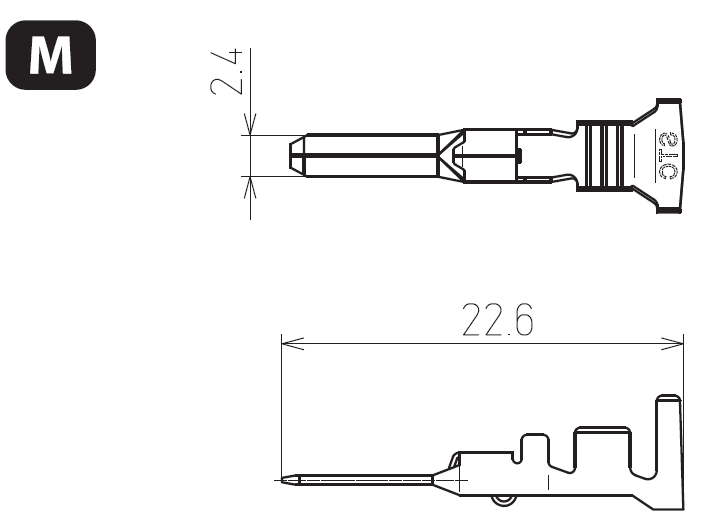

Parts No. CL50C5-0＊0A Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]＊=1:Φ4.10
＊=2:Φ3.77
＊=3:Φ2.91Applicable Cable Diameter ＊=1:AWG#14~12
＊=2:AWG#18~14
＊=3:AWG#22~18
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
