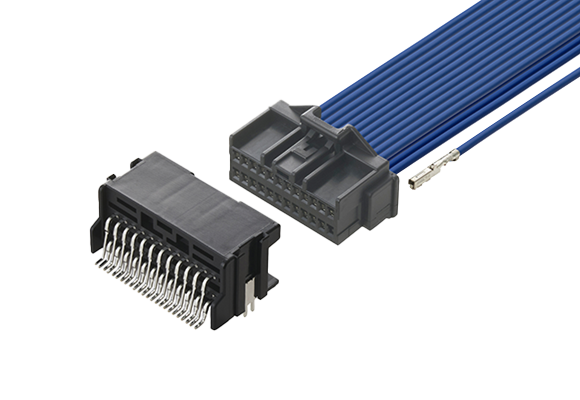

2.00 mm pitch dual SMT connector for automotive applications KA12 Series
KA12 Series
１．The world’s smallest connector compatible w/ ASEEX0.5sq
２．Double locking structure with side retainer
３．Unique PIN structure (low insertion/extraction and high contact reliability)
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.00 mm pitch dual SMT connector for automotive applications KA12 Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

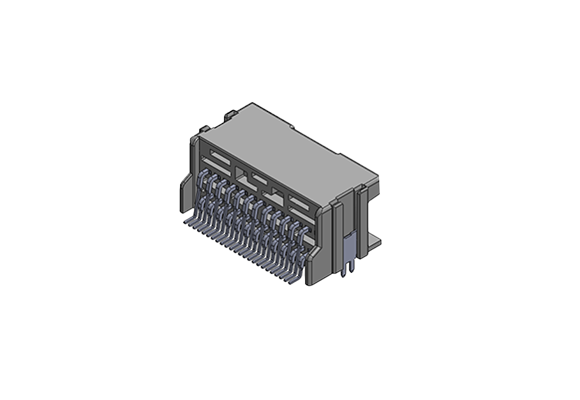

| KA12A6-24B0-01 |  |
24 | 2 | -40 | 125 | DL0018_MCIKA12_BI_CL.pdf | |||||

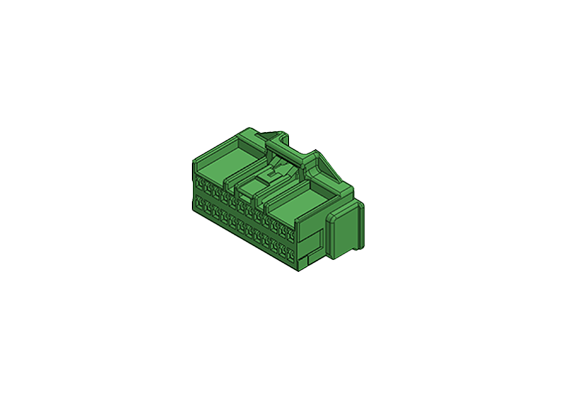

| KA12T3-24BA-01 |  |
24 | 2 | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 125 | DL0018_MCIKA12_BI_CL.pdf | |||

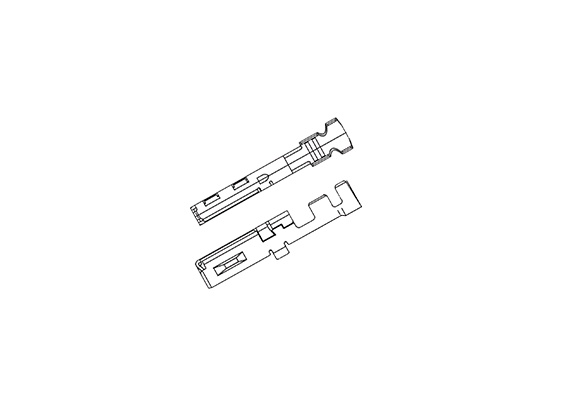

| KA12 Contact |  |
Crimping | -40 | 125 | Φ1.70 | AWG#22～20 | DL0018_MCIKA12_BI_CL.pdf |
