KA12 Series
１．The world’s smallest connector compatible w/ ASEEX0.5sq
２．Double locking structure with side retainer
３．Unique PIN structure (low insertion/extraction and high contact reliability)
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
Specifications
| Parts No. | KA12 Contact |
|---|---|
| Mounting Method/ Wiring method |
Crimping |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
125 |
| Cable Jacket Diameter [Φ] |
Φ1.70 |
| Applicable Cable Diameter | AWG#22～20 |
Table of P/N
| Parts No. | Mounting Method/ Wiring method |
Operating Temparature Min [deg.C] |
Operating Temparature Max [deg.C] |
Cable Jacket Diameter [Φ] |
Applicable Cable Diameter | Catalog |
|---|

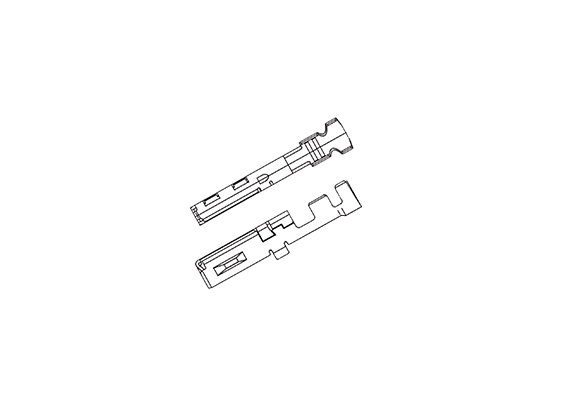

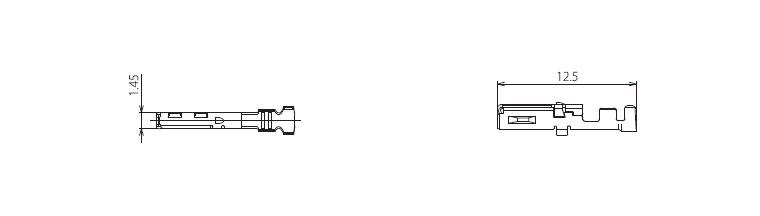

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
