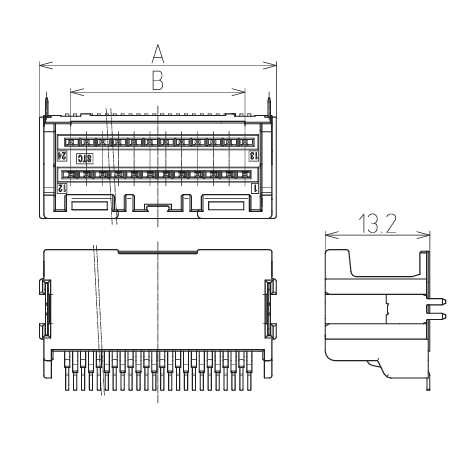

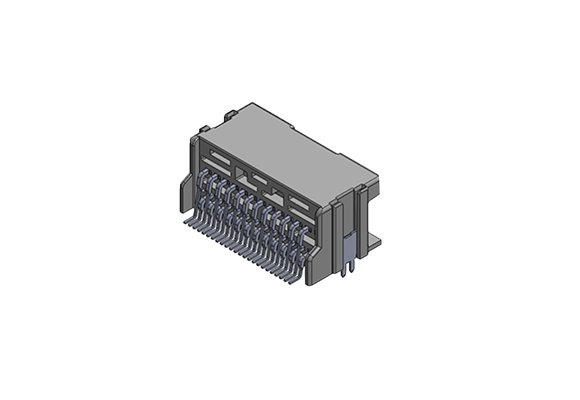

KA12T3-24BA-01

KA12 Series
１．The world’s smallest connector compatible w/ ASEEX0.5sq
２．Double locking structure with side retainer
３．Unique PIN structure (low insertion/extraction and high contact reliability)

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. KA12T3-24BA-01
    Pin Count 24
    Pich
    [mm]    		 2
    Current Rating
    [A/Pin]    		 3
    Dielectric Withstanding
    Voltage    		 1,000V A.C.(r.m.s.) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 125

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
