Board to Cable Connecters 2.00 mm pitch dual SMT connector for automotive applications

KA12A6-24B0-01

Outline

KA12 Series
1.The world’s smallest connector compatible w/ ASEEX0.5sq
2.Double locking structure with side retainer
3.Unique PIN structure (low insertion/extraction and high contact reliability)

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. KA12A6-24B0-01
Pin Count 24
Pich
[mm]
2
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
125

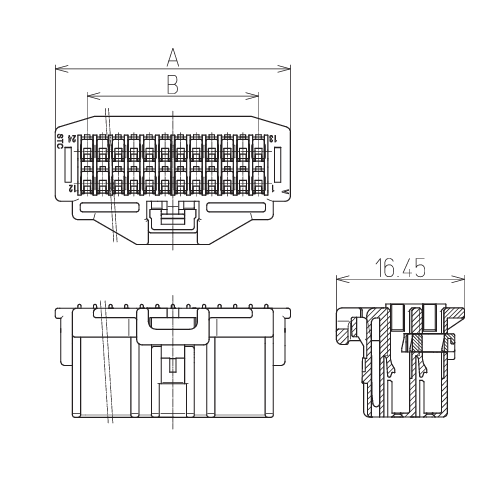

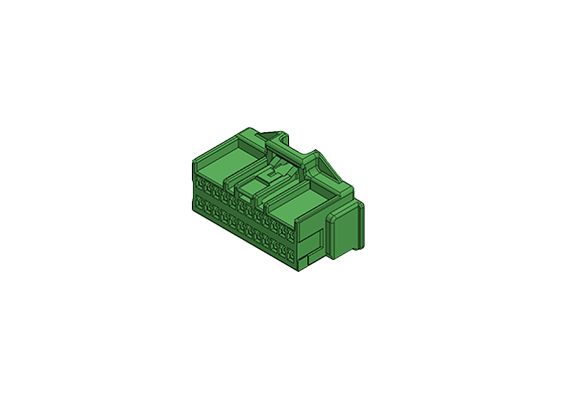

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
