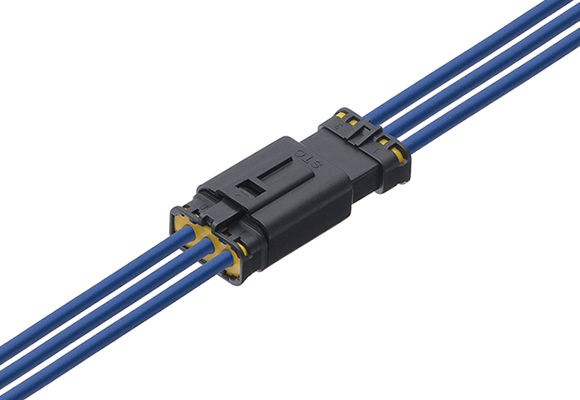

4.50mm Pitch Waterproof Connector
CE01 Series
１．Waterproof performance with terminal insertion only
２．Improved workability by latch lock mechanism
３．Branch type is available
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CE01A6-0()B0-0* |  |
2,3 ＊=4:2Pin Only |
4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.70～Φ2.30 ＊=2:Φ2.20～Φ2.80 ＊=3:Φ2.70～Φ3.20 *=4:Φ1.40～Φ1.80 |
DL0009_MCICE01_BI_CL.pdf | |
| CE01A5-0()B0-0* |  |
2,3 ＊=4:2Pin Only |
4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | ＊=1:Φ1.70～Φ2.30 ＊=2:Φ2.20～Φ2.80 ＊=3:Φ2.70～Φ3.20 *=4:Φ1.40～Φ1.80 |
DL0009_MCICE01_BI_CL.pdf | |

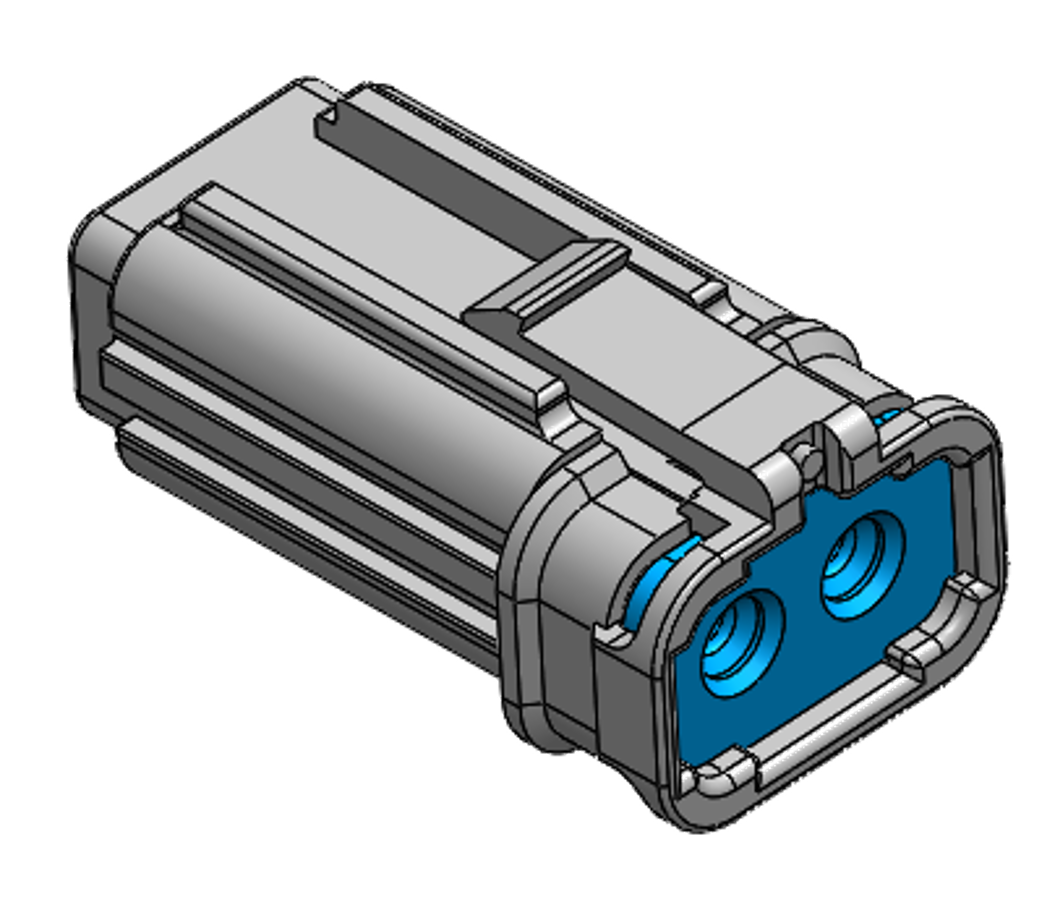

| CE01A5-03B2 |  |
3 | 4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0011_MCICE01_BI_CL.pdf | ||

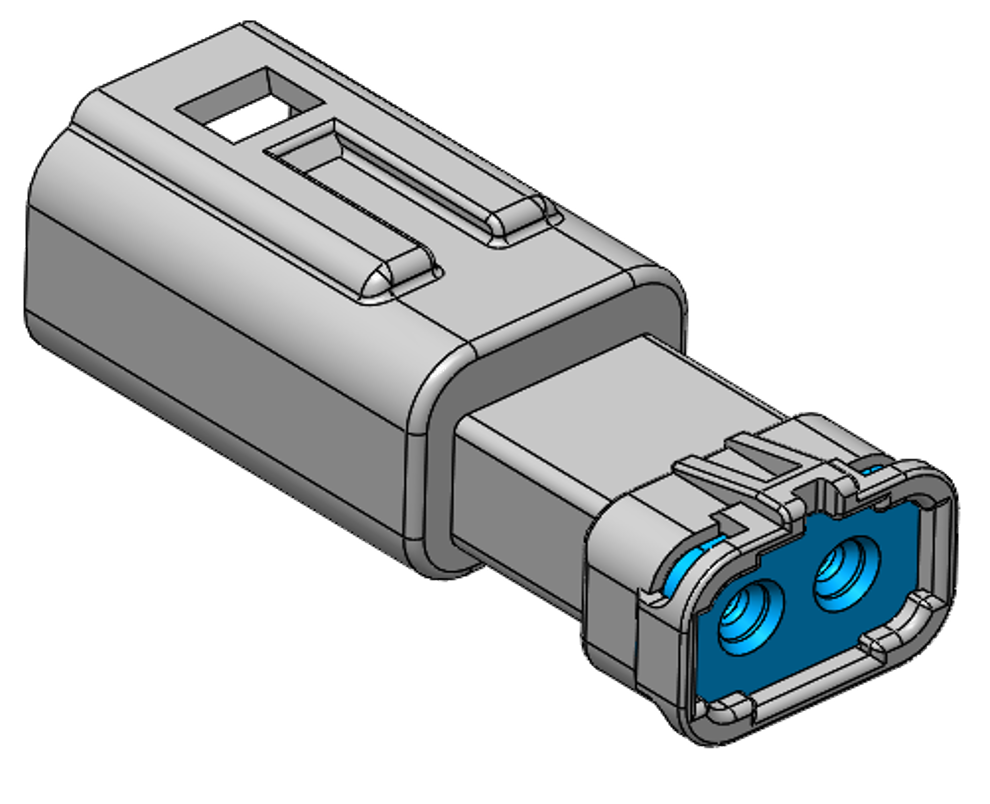

| CE01A5-02NA |  |
2 | 4.50 | IP67 | Crimping | 9.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0010_MCICE01_BI_CL.pdf | ||

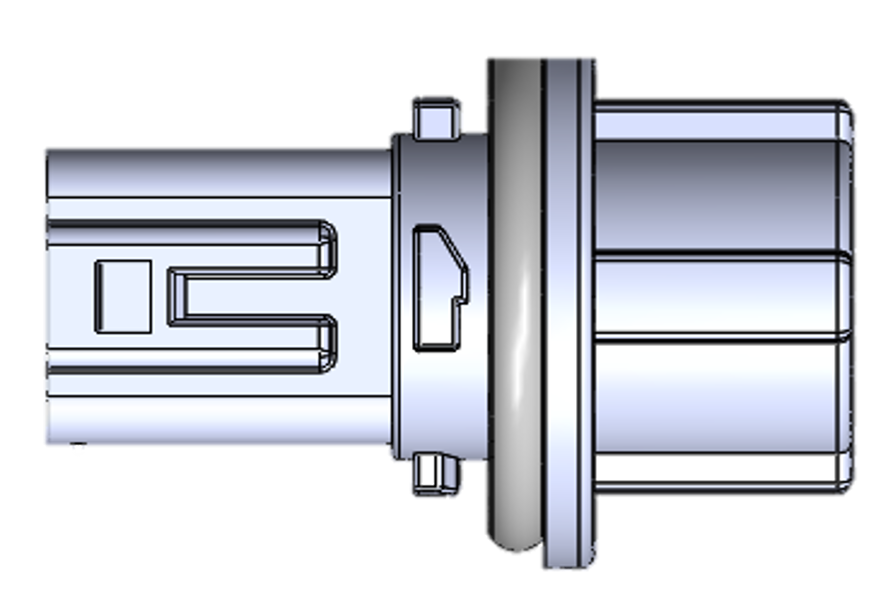

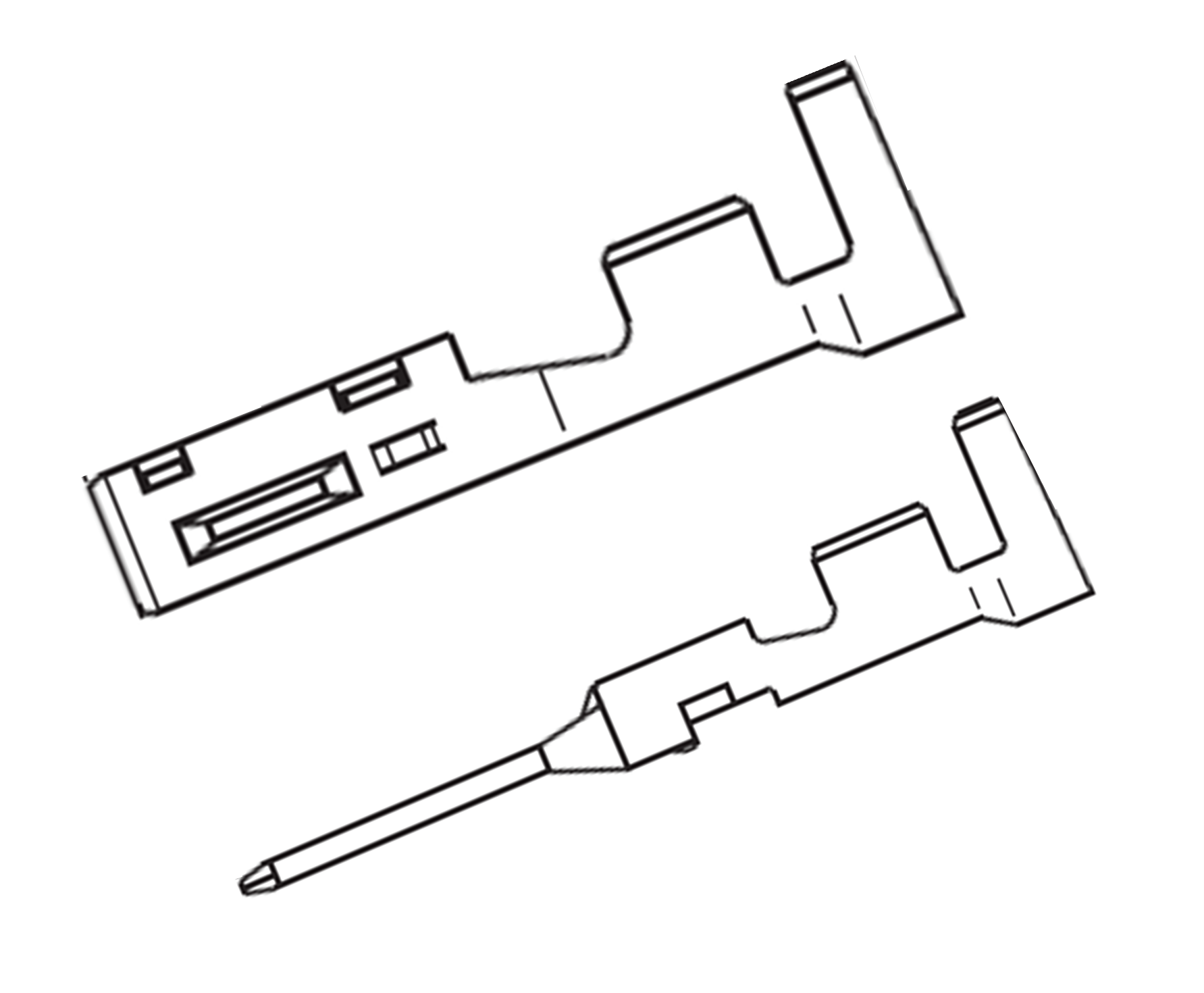

| CE01C*-010A |  |
Crimping | -40 | 105 | Φ2.60 MAX | AWG#22～18 | DL0009_MCICE01_BI_CL.pdf | |||||

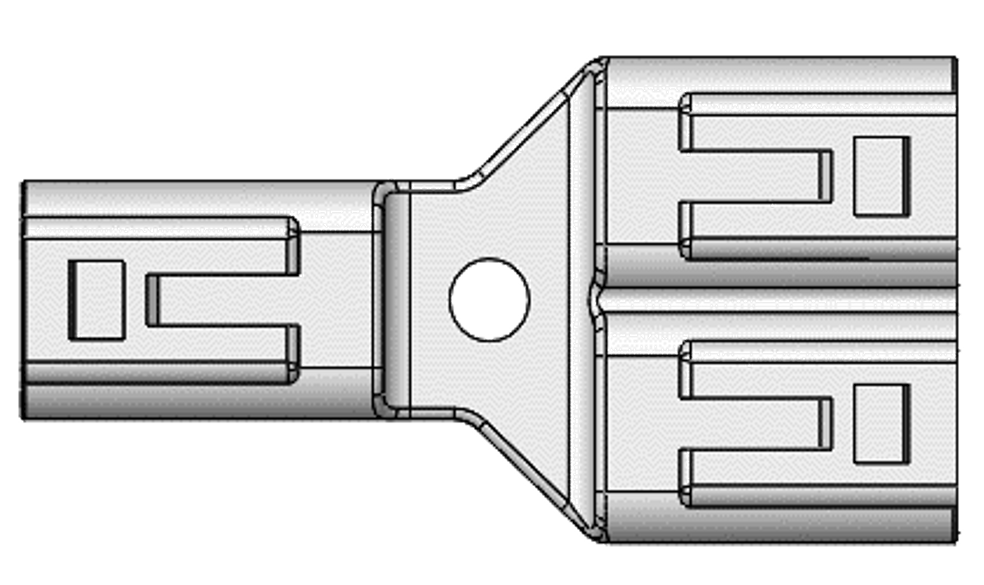

| CE01C*-020A |  |
Crimping | -40 | 105 | Φ3.20 MAX | AWG#18～16 | DL0009_MCICE01_BI_CL.pdf | |||||

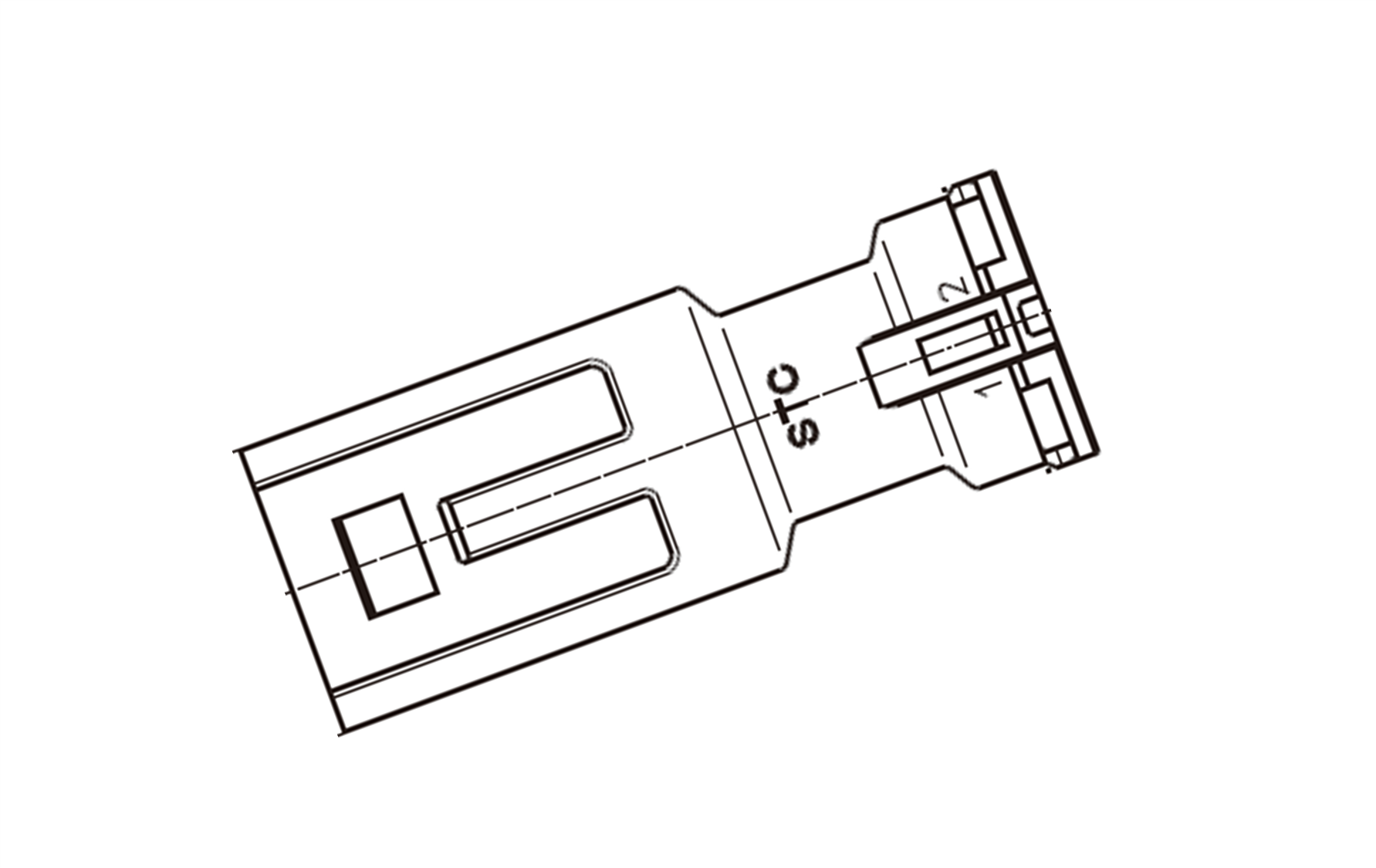

| CE01H6-02#1 |  |
2 | Waterproofing CAP | -40 | 105 | DL0009_MCICE01_BI_CL.pdf | ||||||

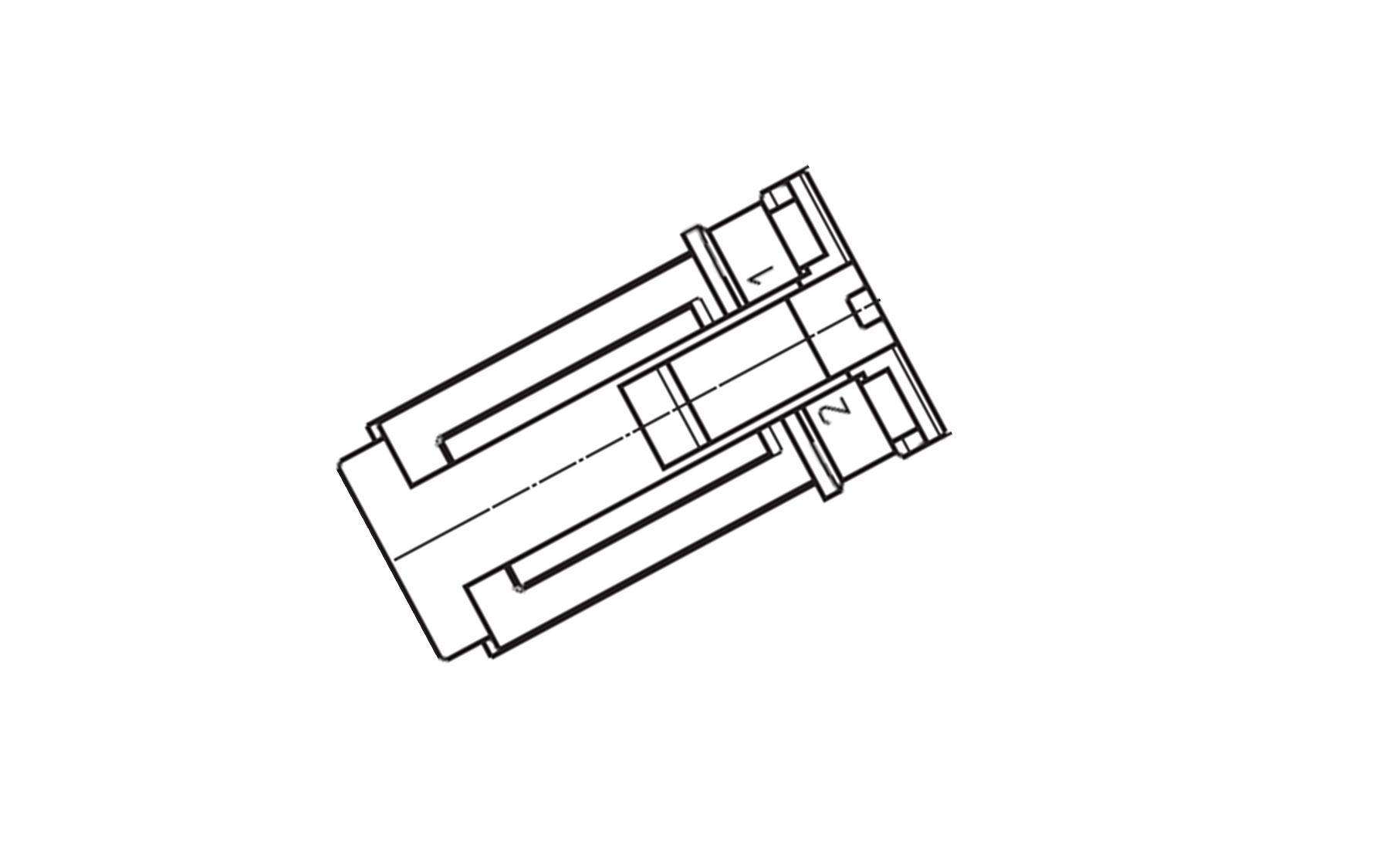

| CE01A5-02#1 |  |
2 | Waterproofing CAP | -40 | 105 | DL0009_MCICE01_BI_CL.pdf | ||||||
| CE01E0-01N1 |  |
Dummy Plug | -40 | 105 | DL0009_MCICE01_BI_CL.pdf |
