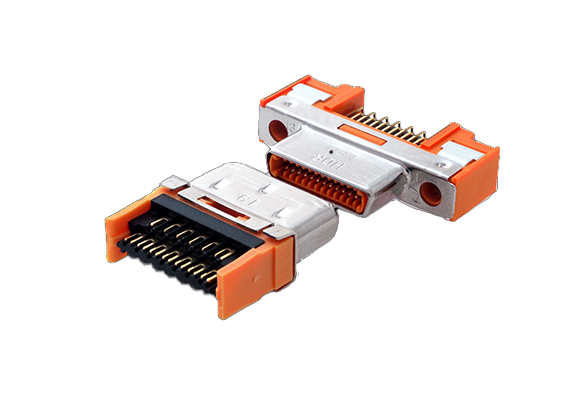

High current 0.8 mm pitch interface connector HDRP Series
HDRP Series
１．HDR Series Current Capacity Upgraded Type
２．Identified by the color
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
High current 0.8 mm pitch interface connector HDRP Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|

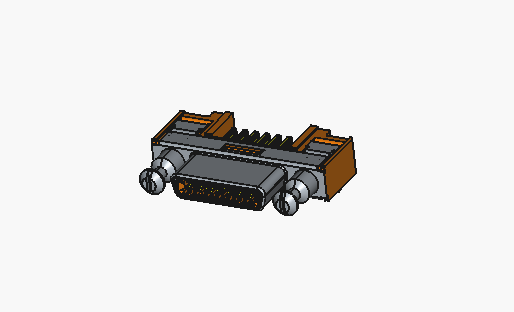

| HDRP-EC26LFDTG2-*+ |  |
26 | 0.8 | Right-angle DIP |
1.00～1.50 | -55 | 85 | DL0099_HTKHDRP_EN.pdf |

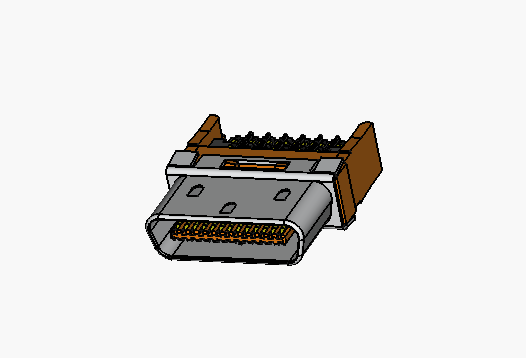

| HDRP-E26MSG1+ |  |
26 | 0.8 | Soldering | 1.2 | -55 | 85 | DL0100_HTKHDRP_EN.pdf |
