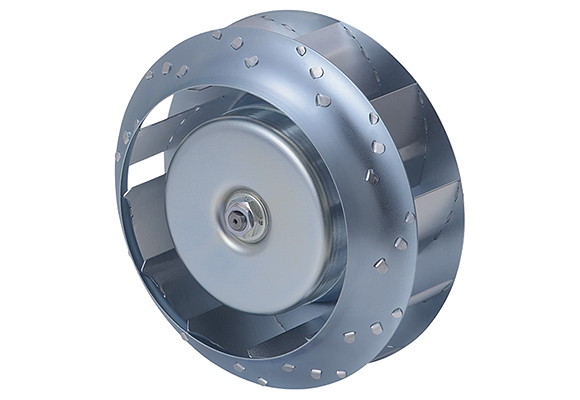

AC fan motors for industrial use

Fan motors rotate fans to cool the inside of industrial equipment and other motors by directing heat outside.

Download

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Power lower limit [W]	Power upper limit [W]	rated speed lower limit [min-1]	rated speed upper limit [min-1]	Max. Air Flow lower limit [m3/min]	Max. Air Flow upper limit [m3/min]	Max. Static Pressure lower limit [Pa]	Max. Static Pressure upper limit [Pa]
PT4720	25	30	2550	3050	1.70	2.70	48.0	70.0
RT5318	27	35	2450	2950	1.60	2.30	155.0	223.0
PT5921	22	33	2500	3200	3.30	4.50	90.0	156.0
RT6323	35	58	2050	2900	3.10	4.20	170.0	243.0
RT6925	49	95	2450	3250	4.00	5.50	240.0	365.0
PT7126	37	75	2660	3250	7.60	10.00	130.0	220.0
PT8330	35	82	2500	3050	12.00	14.30	108.0	244.0
PT9833	103	190	2600	3100	17.70	23.50	166.0	305.0
PT13839	73	114	1350	1600	26.20	34.30	143.0	196.0
